I’ve bent a lot of aluminum profiles in my time. It’s a cool process! Let’s talk about it.

Aluminum profile bending is the process of shaping aluminum profiles into curved or angled forms. We do this to create custom shapes for various applications. In my factory, bending aluminum profiles is a regular part of our custom fabrication services.

So, how do we bend aluminum profiles? Let’s take a look.

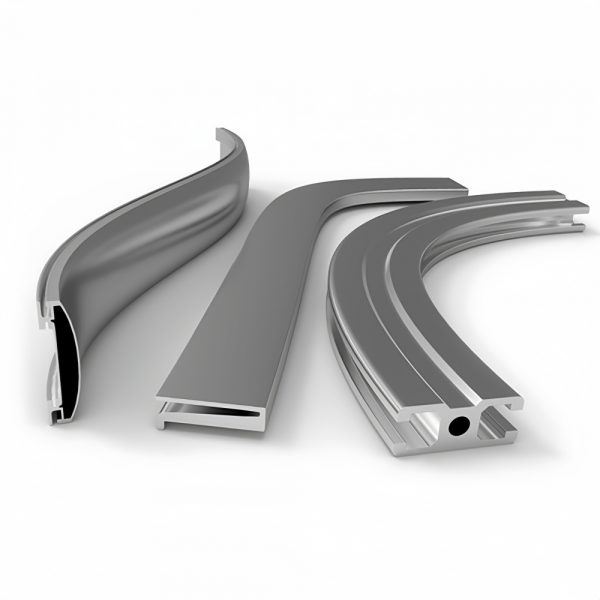

What is aluminum profile bending?

Ever wondered what aluminum profile bending is all about? I’ll explain.

I find it’s simply the process of taking an aluminum profile and shaping it into a curve or angle. This lets us make custom parts that wouldn’t be possible with straight profiles. I’ve used it to create everything from curved handrails to custom frames.

Let’s dive deeper into the concept of aluminum profile bending. Understanding the basics will help you appreciate its importance in manufacturing.

Definition and Purpose

Aluminum profile bending is the process of permanently deforming an aluminum profile to achieve a desired shape or curvature.

Permanent Deformation: The aluminum is bent beyond its elastic limit, so it retains the new shape.
Custom Shapes: Allows for the creation of complex and unique shapes.
Versatile Applications: Used in a wide range of industries and applications.

Types of Bending

There are several different types of bending techniques.

Bending Type	Description	Applications
Roll Bending	The aluminum profile is passed through a series of rollers to gradually bend it into a curve.	Creating large radius curves, such as those found in handrails or architectural elements.
Rotary Draw Bending	The aluminum profile is clamped to a rotating die and drawn around it to create a bend.	Creating tight radius bends and complex shapes.
Press Bending	The aluminum profile is bent using a press and a die.	Creating simple bends and angles.

Material Considerations

The type of aluminum alloy affects how easily it can be bent.

Softer Alloys: Alloys like 5052 and 6063 are easier to bend.
Harder Alloys: Alloys like 6061 require more force and careful technique.
Heat Treatment: Sometimes, heat treatment is used to make the aluminum more pliable for bending.

In my experience, choosing the right alloy and bending technique is essential for achieving the desired results without damaging the aluminum profile.

What are the common bending methods for aluminum profiles?

What are the different ways we can bend aluminum profiles? Let’s explore the methods we use most often.

I think roll bending is great for making smooth curves. We also use rotary draw bending for tighter bends and more complex shapes. The method we choose depends on the shape we need to create and the properties of the aluminum.

Let’s delve deeper into the common methods used for bending aluminum profiles. Each method has its own advantages and is suited for different types of bends.

Roll Bending

Roll bending uses a series of rollers to gradually bend the aluminum profile.

Three Rollers: Typically uses three rollers to control the bending process.
Large Radius Curves: Ideal for creating large radius curves.
Consistent Shape: Produces a consistent and smooth curve.

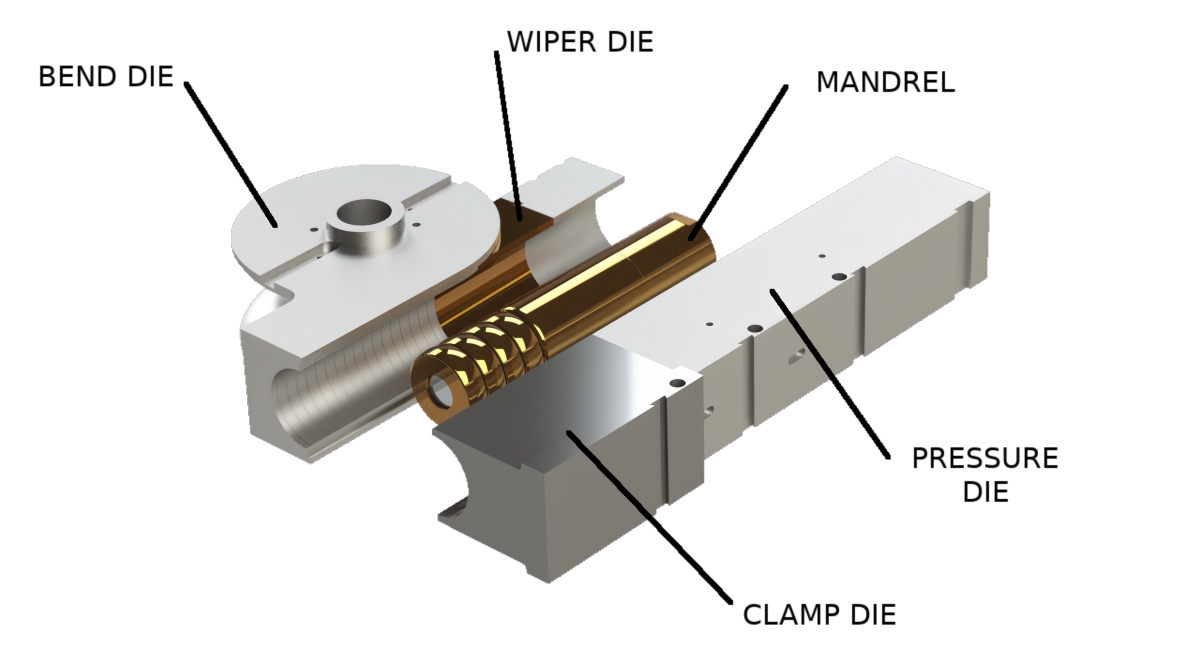

Rotary Draw Bending

Rotary draw bending clamps the aluminum profile to a rotating die and draws it around the die.

Feature	Description	Benefit
Clamping	The aluminum profile is securely clamped to the die.	Prevents slipping and ensures accurate bending.
Rotating Die	The die rotates to bend the aluminum profile.	Allows for precise control over the bend.
Tight Radii	Can create tight radius bends.	Useful for creating complex shapes.

Press Bending

Press bending uses a press and a die to bend the aluminum profile.

Simple Bends: Best for creating simple bends and angles.
Limited Complexity: Not suitable for complex shapes or tight curves.
Cost-Effective: A relatively simple and cost-effective bending method.

Considerations for Each Method

Each bending method has its own advantages and limitations.

Roll Bending: Best for smooth, large radius curves.
Rotary Draw Bending: Best for tight bends and complex shapes.
Press Bending: Best for simple bends and angles.

In my factory, we use all three of these methods depending on the specific requirements of the project. We carefully consider the shape, size, and material properties of the aluminum profile before choosing the best bending method.

What are the applications of bent aluminum profiles?

Where do we see bent aluminum profiles used in the real world? I’ll give you some examples.

I think you’ll often see them in architecture, like curved window frames or roof structures. They are also used in transportation, like curved parts for trains and buses. I’ve even seen them used in furniture design. The possibilities are endless!

Let’s explore the diverse applications of bent aluminum profiles. Their unique shapes and properties make them ideal for a wide range of uses.

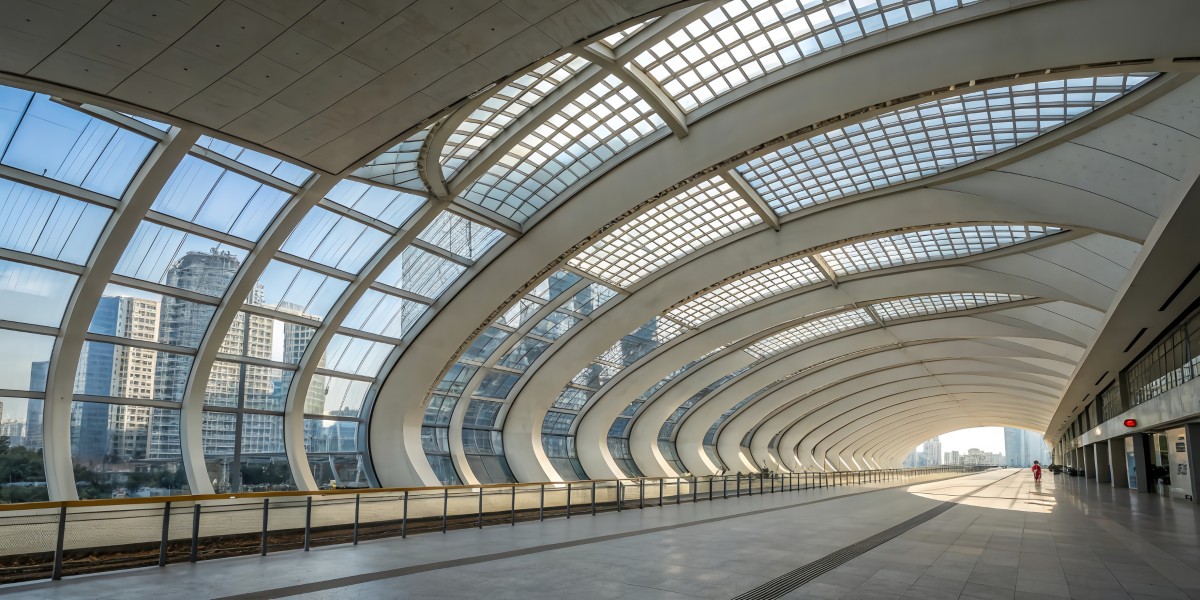

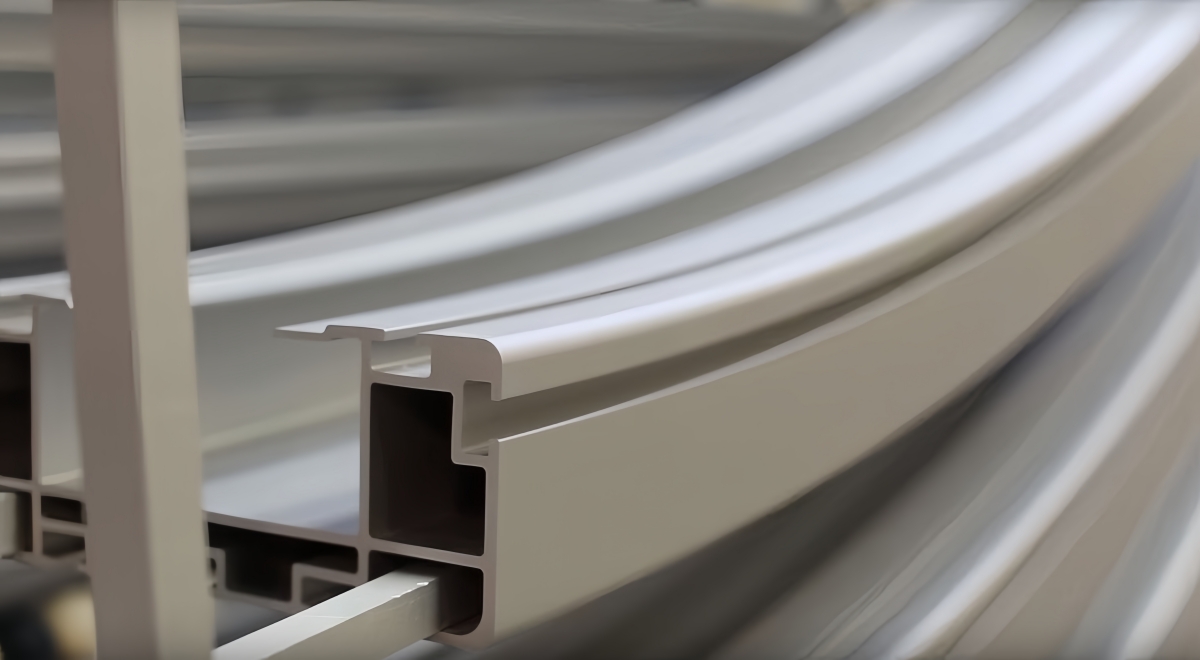

Architectural Applications

Bent aluminum profiles are commonly used in architectural designs.

Curved Window Frames: Adds a unique and modern look to buildings.
Roof Structures: Creates aesthetically pleasing and structurally sound roofs.
Decorative Elements: Used for decorative trims and accents on buildings.

Transportation Applications

Bent aluminum profiles are used in various transportation industries.

Industry	Application	Benefit
Automotive	Used in curved body panels and structural components.	Reduces weight and improves fuel efficiency.
Aerospace	Used in aircraft fuselages and wing components.	Provides strength and durability while minimizing weight.
Rail	Used in train and bus structures.	Creates strong and lightweight structures for passenger vehicles.

Furniture Design

Bent aluminum profiles are increasingly used in furniture design.

Unique Shapes: Allows for the creation of unique and eye-catching furniture designs.
Lightweight: Makes furniture easy to move and rearrange.
Durable: Provides long-lasting and sturdy furniture.

Other Applications

There are many other applications for bent aluminum profiles.

Medical Equipment: Used in medical equipment where curved shapes are needed.
Display Cases: Used in display cases to create visually appealing designs.

In my factory, we’ve worked on projects that use bent aluminum profiles in all of these applications and more. The versatility of this material makes it a valuable asset for many different industries.

Conclusion

Aluminum profile bending lets us make cool shapes. It’s used in many different products.
