Precision Curved Aluminum Pipe Applications?

Need strong, lightweight pipes bent into specific shapes for your project? Finding reliable suppliers who can deliver precise curves without defects is often a major hurdle I see clients face.

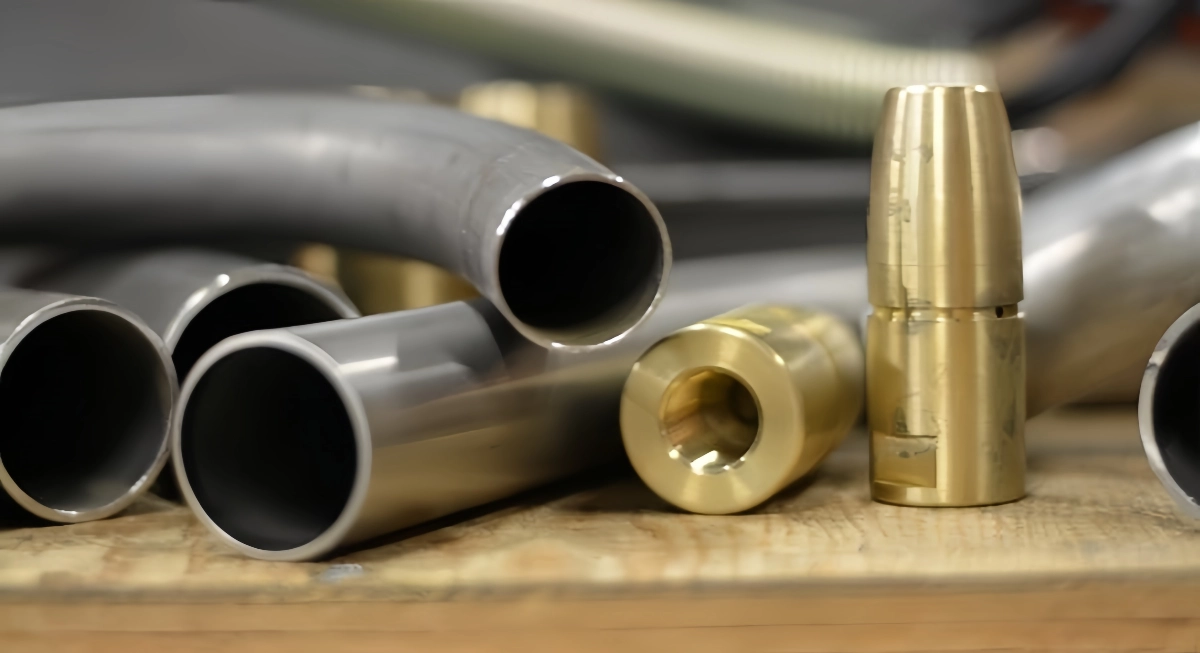

From my years supplying custom aluminum components, curved aluminum pipe is essentially standard aluminum pipe that we’ve expertly bent using specialized techniques. I provide these parts for applications needing specific routing, structural integrity, and aluminum’s inherent benefits.

This capability transforms simple straight pipes into vital components for countless designs. But what exactly defines curved pipe, how is it typically formed, where is it commonly applied, and can it receive finishes like polishing or coating? Let’s examine these points.

What is considered curved aluminum pipe?

Straight pipes work for many situations, but often designs require turns, bends, or flowing shapes. Does just any bent pipe qualify as proper curved pipe?

In my manufacturing experience, curved aluminum pipe specifically refers to aluminum pipe sections permanently deformed into arcs or bends using controlled processes. I ensure these maintain their round profile and structural soundness, unlike pipes merely bowed or accidentally bent.

Curved aluminum pipe starts its life as standard, straight aluminum pipe. A pipe is generally defined as a hollow cylinder used primarily for conveying fluids or gases, often specified by a nominal size and schedule which relates to wall thickness (though the term is sometimes used interchangeably with tube in casual conversation). The defining characteristic of curved aluminum pipe is that it has undergone a deliberate, controlled bending process to alter its axis from a straight line to a specific curve or series of curves.

This is distinct from pipe that might be slightly bowed due to handling or internal stresses. Curved aluminum pipe is intentionally shaped to follow a predetermined path or radius according to engineering drawings or specifications. The goal during the bending process is usually to achieve the desired curve while minimizing negative effects on the pipe’s properties, such as:

• Maintaining the round cross-sectional shape (avoiding excessive ovality or flattening).
• Preventing defects like kinks, wrinkles, or buckles on the inner radius.
• Minimizing wall thinning on the outer radius and excessive thickening on the inner radius.
• Preserving the material’s structural integrity without causing cracks or fractures.

Key Characteristics

• Material: Made from aluminum alloys suitable for bending (e.g., 6061, 6063, 5052, 3003).
• Form: Possesses one or more intentional bends or curves along its length.
• Cross-Section: Ideally remains close to its original circular profile, even at the bend.
• Integrity: Free from major defects like kinks or cracks introduced during bending.

Pipe vs. Tube Distinction (Briefly)

While often used interchangeably, technically:

• Pipe: Usually specified by nominal pipe size (NPS) and schedule (wall thickness), primarily for fluid/gas transport. Tolerances may be less strict.
• Tube: Usually specified by outside diameter (OD) and exact wall thickness, often used for structural applications, heat exchangers, or mechanical components where precise dimensions are critical.

In the context of bending, the techniques and challenges are similar, but the specifications and intended applications might differ slightly. This article focuses on items generally referred to as “pipe”.

Suitable Alloys and Tempers

The ability to bend aluminum pipe successfully depends heavily on the chosen alloy and its temper (hardness/strength level achieved through heat treatment or strain hardening). Softer materials bend more easily.

Choosing an alloy in an ‘O’ (annealed) or T4 temper generally provides the best results for forming complex or tight bends. Bending harder tempers like T6 is possible but requires more robust equipment, larger radii, and careful process control to avoid fractures. Sometimes, parts are bent in a softer temper and then heat-treated afterwards to achieve final strength, though this can introduce distortion.

How is aluminum pipe typically curved?

Getting a smooth, strong curve in aluminum pipe isn’t as simple as just forcing it around a corner. I know from experience that improper methods lead to weak, unusable parts.

As a supplier of these parts, I rely on specialized bending techniques like mandrel bending or roll bending. We use precise tooling and machinery to support the pipe during deformation, ensuring a smooth curve without kinking or excessive distortion.

Bending aluminum pipe into precise curves requires specialized equipment and techniques designed to reshape the material without causing defects. The goal is to achieve the desired geometry while maintaining the pipe’s structural integrity and flow characteristics (if applicable). Several common methods are employed, chosen based on factors like pipe diameter, wall thickness, bend radius, required precision, and production volume.

Common Pipe Bending Methods

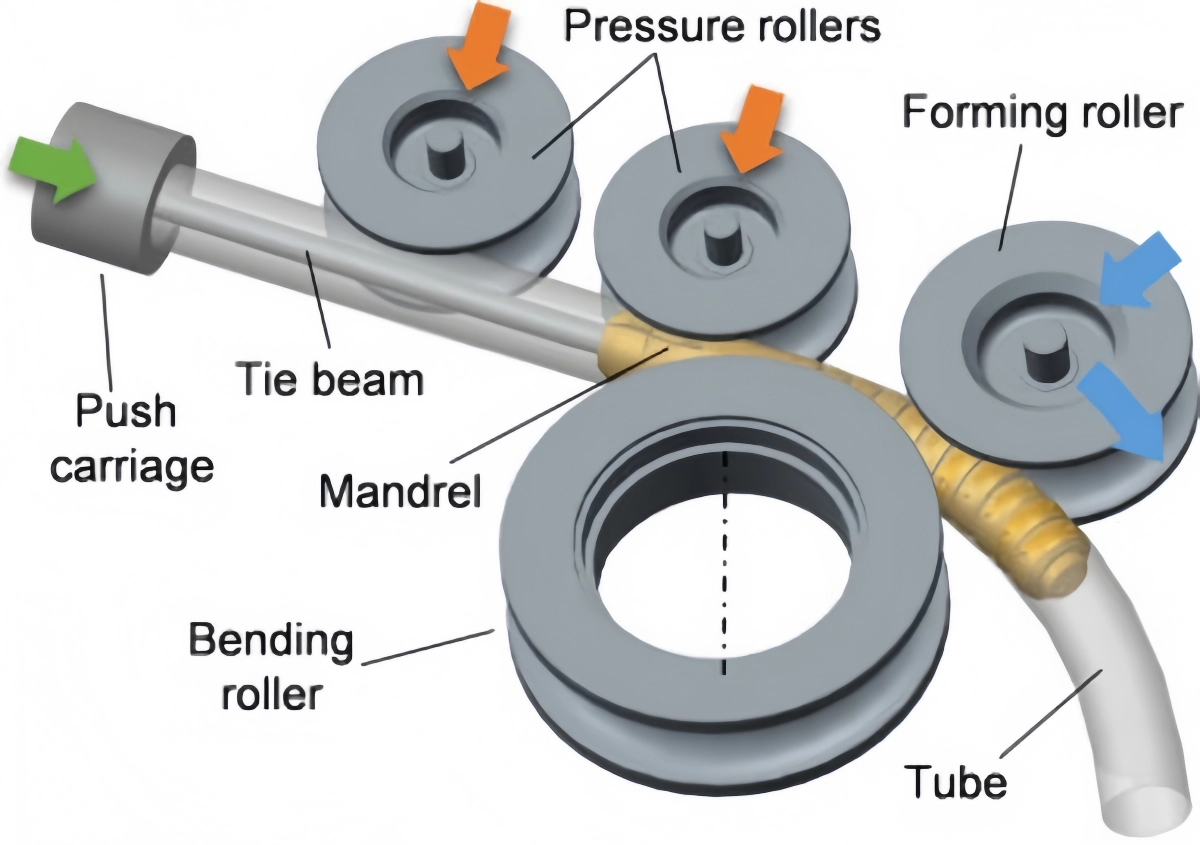

• Rotary Draw Bending (Mandrel Bending): This is arguably the most common method for producing high-quality, precise bends, especially with tighter radii or thinner walls.
  • Process: The pipe is clamped against a rotating bend die. A pressure die applies force to keep the pipe against the bend die. Crucially, a flexible mandrel (often with articulated balls) is inserted inside the pipe at the point of bending. As the pipe is drawn around the bend die, the mandrel supports the inner wall, preventing it from collapsing or kinking. A wiper die supports the material just past the tangent point on the inside radius to prevent wrinkling.
  • Advantages: Produces very accurate bends with minimal ovality and kinking, even on thin-wall pipe or tight radii. Highly repeatable.
  • Disadvantages: Requires specific tooling (bend die, clamp die, pressure die, mandrel, wiper die) for each pipe size and bend radius, making setup more complex and costly.

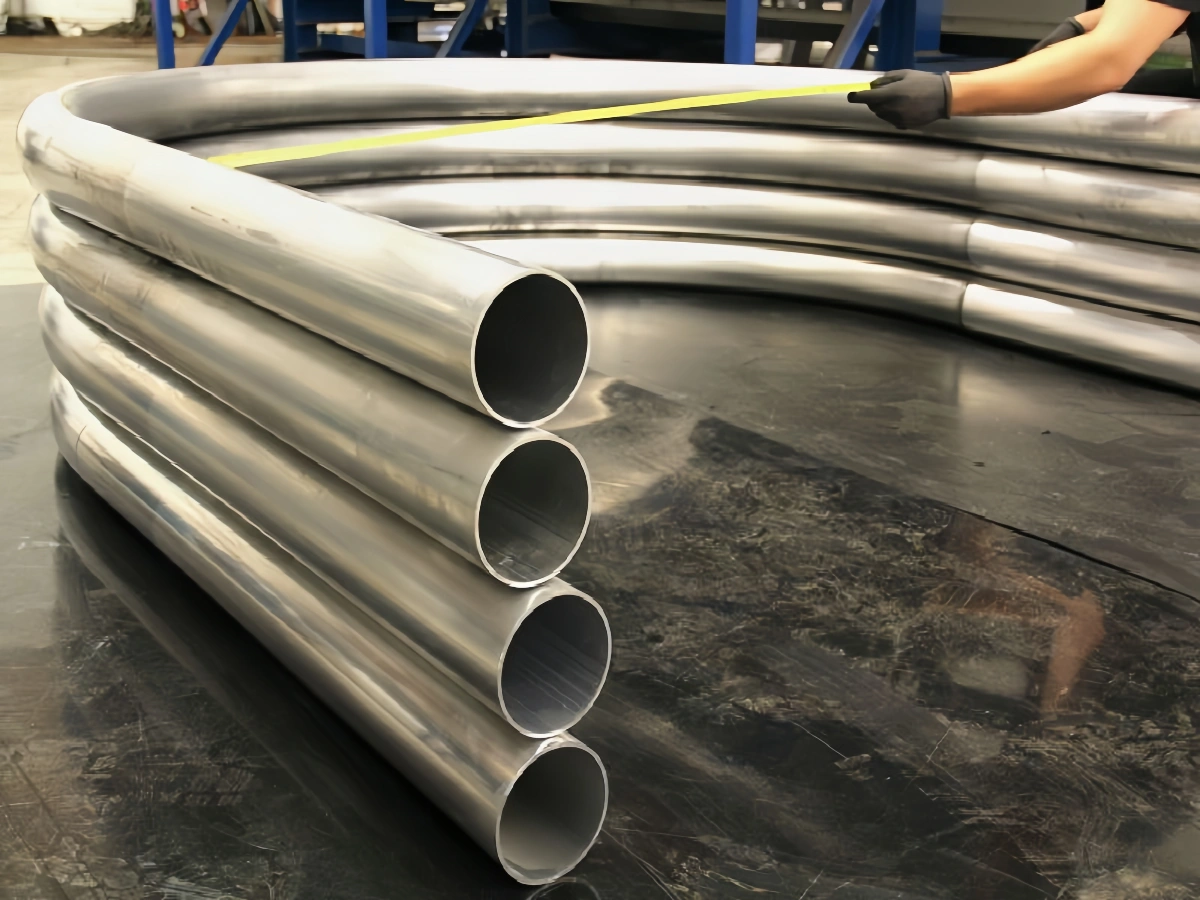

• Roll Bending (Three-Roll or Angle Roll Bending): This method is used for creating large-radius bends, curves, arcs, or even complete circles and coils.
  • Process: The pipe is passed back and forth through three adjustable rollers, typically arranged in a pyramid configuration. By gradually adjusting the position of the central roller relative to the two outer rollers, a continuous curve is imparted to the pipe.
  • Advantages: Can produce very large radii and long sweeping curves. Tooling is often more versatile than rotary draw bending.
  • Disadvantages: Less precise than mandrel bending, generally not suitable for tight radii, potential for some distortion if not set up correctly.
• Compression Bending: A simpler, often lower-cost method suitable for larger radii or thicker-walled pipe where extreme precision or perfect roundness is less critical.
  • Process: The pipe is clamped against a stationary bend die. A moving compression die then sweeps around the bend die, forcing the pipe to conform to its shape. There is no internal support (mandrel).
  • Advantages: Simpler tooling, faster cycle times for some applications.
  • Disadvantages: Higher risk of ovality and kinking, especially on thinner walls or tighter radii, compared to mandrel bending.
• Ram Bending (Press Bending): One of the simplest methods, often used for less critical applications like bending electrical conduit or structural supports.
  • Process: The pipe is supported at two points, and a hydraulic ram presses down on the center (between the supports) using a radius block or die to create the bend.
  • Advantages: Very simple, low tooling cost.
  • Disadvantages: Least precise method, significant risk of kinking and ovality, generally only suitable for thick-walled pipe and large radii where appearance and precise profile are not critical.

Key Challenges in Bending

Regardless of the method, successful bending involves overcoming inherent material behaviors:

• Kinking/Wrinkling: Collapse of the inner bend radius due to compressive forces.
• Ovality: Distortion of the circular cross-section into an oval shape.
• Wall Thinning: Stretching and thinning of the material on the outer bend radius.
• Wall Thickening: Compression and thickening of the material on the inner bend radius.
• Springback: The elastic recovery of the material after the bending force is removed, causing the final angle to be less than the angle formed during bending. Operators must over-bend slightly to compensate.

Here’s a comparative table:

Choosing the right method and using high-quality, well-maintained tooling are crucial for producing defect-free curved aluminum pipes that meet design specifications. Operator skill and experience also play a significant role.

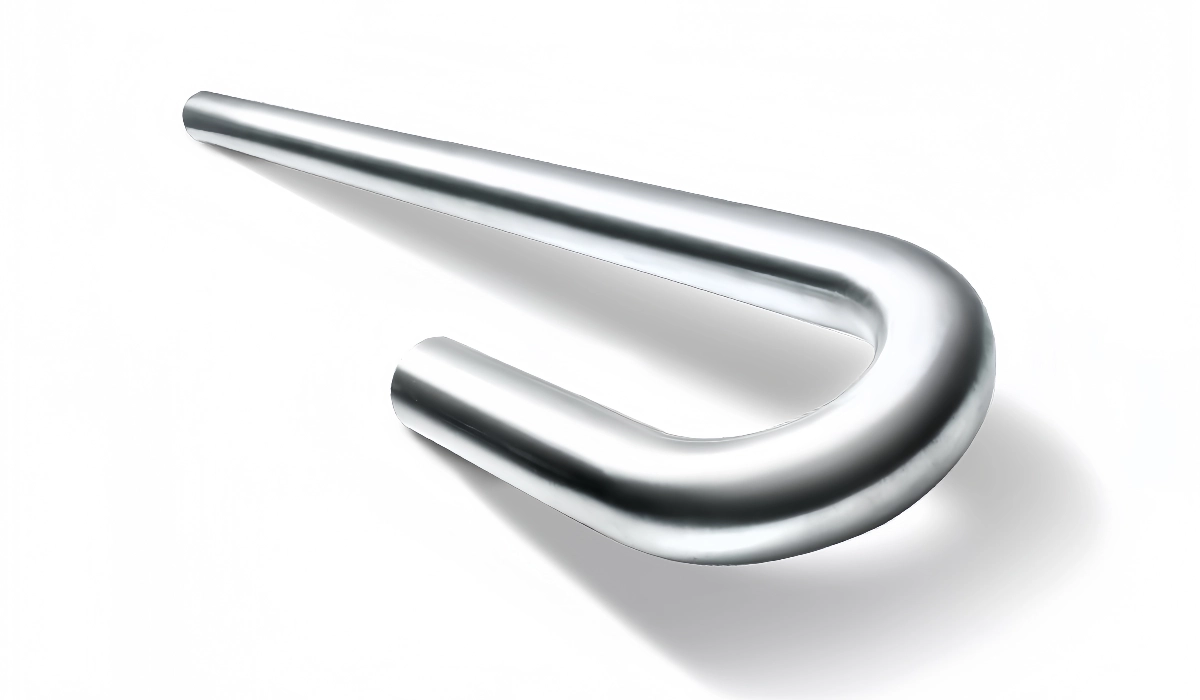

What are common uses for curved aluminum pipes?

Knowing how pipes are bent is useful, but where does this capability actually get applied? I see bent aluminum pipes used across a surprising range of products and systems.

Based on the custom orders I fulfill, curved aluminum pipes are frequently used in automotive systems for fluid transfer (coolant, AC), in architectural railings and structures, for frames in furniture and bicycles, and in various industrial piping and conduit applications.

The ability to precisely curve aluminum pipes opens up a vast range of possibilities for designers and engineers. Combining the inherent advantages of aluminum (lightweight, corrosion resistance, good strength-to-weight ratio) with the geometric freedom offered by bending allows for optimized solutions in numerous applications.

Fluid and Gas Conveyance

This is a primary application area, leveraging aluminum’s corrosion resistance and formability.

• Automotive Systems: Perhaps the most visible use. Curved aluminum pipes are essential for routing:
  • Engine Coolant: Connecting radiator, engine block, heater core.
  • Air Conditioning: Carrying refrigerant between compressor, condenser, evaporator.
  • Fuel Lines: Transporting fuel from the tank to the engine (though sometimes replaced by other materials).
  • Oil Cooler Lines: Connecting the engine/transmission to oil coolers.
  • Turbocharger Piping: Intercooler piping often involves complex bends.
• HVAC and Refrigeration: Similar to automotive AC, residential and commercial systems use bent aluminum pipes for refrigerant flow.
• Aerospace: Fuel, hydraulic, pneumatic, and environmental control systems heavily rely on lightweight, precisely bent aluminum pipes.
• Industrial Process Piping: In certain applications involving compatible fluids or gases where aluminum’s properties are advantageous (e.g., compressed air lines, some chemical processing).

Structural and Framework Applications

Aluminum’s strength-to-weight ratio makes bent pipes suitable for various structures.

• Furniture: Modern chair frames, table legs, decorative elements often feature sleek curves achieved with bent aluminum pipe. Outdoor furniture particularly benefits from its weather resistance.
• Architectural Elements:
  • Handrails and Balustrades: Curved stairways, balconies, and walkways frequently use bent aluminum pipes for safety railings, offering both strength and aesthetic appeal.
  • Canopies and Shelters: Support structures for architectural features.
  • Space Frames and Trusses: Complex structures sometimes incorporate curved pipe members.
• Bicycle Frames: While high-end frames might use more specialized tubing, some bicycle designs utilize curved aluminum pipes for top tubes, seat stays, etc., to achieve specific geometries or aesthetics.
• Medical Equipment: Frames for wheelchairs, walkers, IV stands, and other mobile equipment benefit from lightweight, easily cleanable bent pipe structures.
• Marine Structures: Railings, T-top frames, radar arches on boats use corrosion-resistant bent aluminum pipe.

Other Applications

• Electrical Conduit: While often steel or PVC, aluminum conduit is sometimes used, and field bending (using simpler methods) or pre-bent sections are common for routing wiring.
• Exhaust Systems: Primarily in performance automotive or motorcycle applications where weight saving is critical (though heat resistance can be a limitation depending on proximity to the engine).
• Recreational Equipment: Tent poles (using thin-walled, flexible bent pipe), backpack frames, exercise equipment handles.
• Display Systems: Frameworks for trade show booths, retail displays, and signage.

Here’s a table summarizing key sectors and typical applications:

The versatility stems from aluminum’s favorable properties combined with the geometric possibilities unlocked by reliable bending techniques.

Can curved aluminum pipe be polished or coated?

After bending aluminum pipe into the desired shape, what about the finish? Can these curved parts be polished for a shine or coated for protection or color? This is crucial for many applications I supply.

Yes, absolutely. My clients frequently require finishes on curved aluminum pipe. It can be mechanically polished to various lusters or coated using processes like anodizing or powder coating, enhancing appearance and durability.

Achieving the correct shape through bending is often only part of the manufacturing process. Many applications require specific surface finishes for aesthetic appeal, enhanced corrosion protection, increased durability, or other functional reasons. Fortunately, curved aluminum pipe is highly receptive to various common finishing techniques.

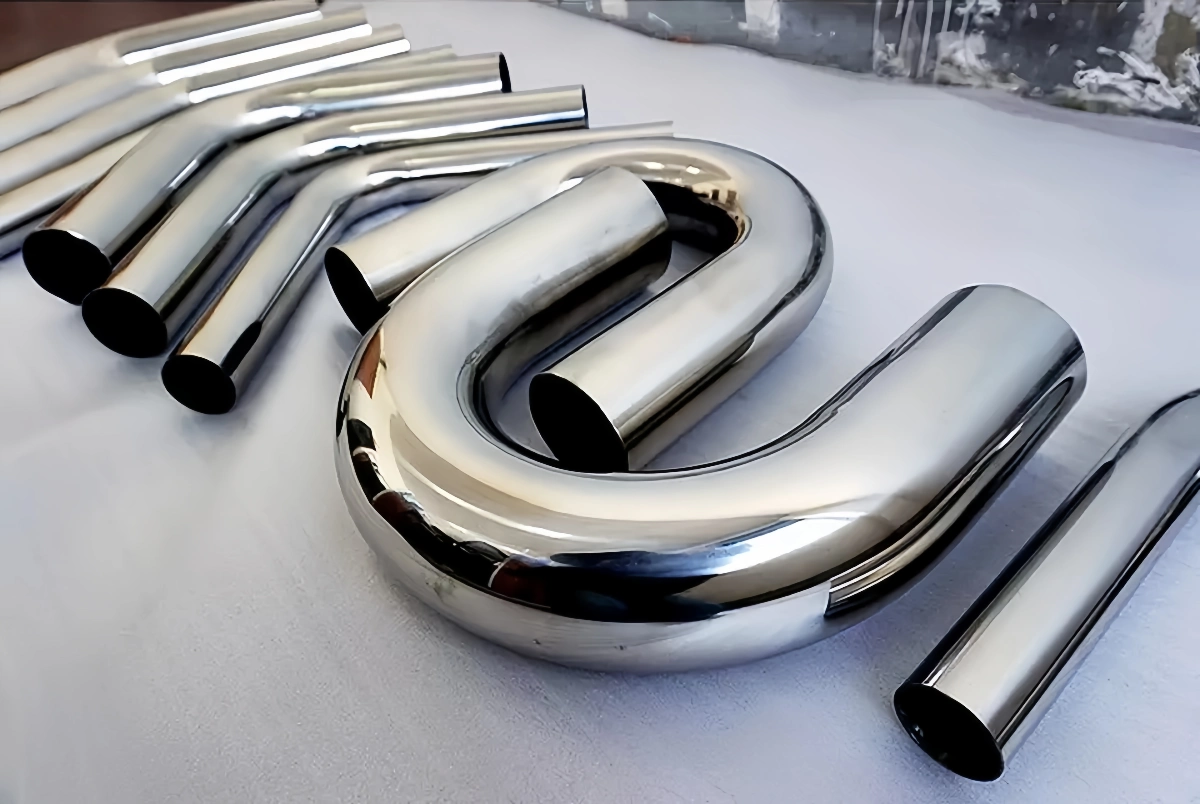

Polishing

Mechanical polishing can be applied to curved aluminum pipes to achieve different levels of shine and smoothness.

• Process: Involves using progressively finer abrasives (belts, wheels, compounds) to smooth the surface and remove imperfections. This can range from a basic satin finish to a bright, mirror-like polish.
• Applications: Often used for decorative parts like architectural handrails, furniture frames, automotive trim, and marine railings where a bright, metallic appearance is desired.
• Challenges: Achieving a uniform polish, especially inside tight bends or complex curves, can be labor-intensive and requires skill or specialized automated equipment. The original surface condition of the pipe also affects the final result. Maintaining the finish requires periodic cleaning, as polished aluminum can still oxidize or get scratched.

Coating Options

Applying a coating is very common for both protection and aesthetics.

• Anodizing:
  • Process: An electrochemical process that creates a hard, durable layer of aluminum oxide integral to the surface. (See previous article’s section on anodizing curved tubing for more detail).
  • Benefits: Excellent corrosion resistance, increased surface hardness and wear resistance, ability to add color (Type II anodizing), good base for paint.
  • Considerations: Requires careful cleaning and racking, potential for slight variations in coating thickness around sharp bends. Suitable alloys (like 6061, 6063) are needed.
• Powder Coating:
  • Process: A dry powder (pigmented resin) is electrostatically applied to the grounded aluminum pipe. The pipe is then heated in an oven, causing the powder to melt, flow, and cure into a hard, durable coating.
  • Benefits: Provides a very durable, uniform, and attractive finish in a vast range of colors and textures (gloss, matte, textured). Offers good corrosion and chemical resistance. Generally more environmentally friendly than liquid painting (less VOCs).
  • Considerations: The coating adds thickness, which must be accounted for in tolerance-critical applications. Proper surface preparation (cleaning, often chemical pre-treatment like chromate or non-chrome conversion coating) is crucial for good adhesion. Curing requires oven heating.
• Liquid Painting:
  • Process: Traditional spraying or dipping using liquid paints (enamels, epoxies, urethanes).
  • Benefits: Wide color availability, can be applied in various thicknesses, some specialized paints offer specific properties (e.g., high chemical resistance).
  • Considerations: Requires careful surface preparation, often involves solvents (VOCs), durability might be less than powder coating or anodizing depending on the paint system. Uniform application on complex curves can be challenging.

Preparation is Key

Regardless of the chosen finish, proper surface preparation of the curved pipe is essential for achieving good results. This typically involves:

1. Cleaning: Removing oils, greases, lubricants, and dirt from the bending process.
2. Deoxidizing/Etching: Removing the natural oxide layer and creating a uniform surface texture for better adhesion or coating consistency.
3. Pre-treatment (for painting/powder coating): Applying a conversion coating (chromate or non-chrome) enhances adhesion and corrosion resistance beneath the organic coating.

This table summarizes common finishing options:

In summary, curved aluminum pipe readily accepts a wide range of polishing and coating finishes, allowing designers to meet both functional requirements (durability, corrosion resistance) and aesthetic goals for their final products. Choosing the right finish depends on the application’s environment, performance needs, and desired look.

Conclusion

Curved aluminum pipe is defined by its intentional bends achieved through controlled processes like mandrel bending. It finds wide use in automotive, architectural, furniture, and industrial sectors due to its properties. Finishing options like polishing, anodizing, or powder coating are readily available for enhanced durability and appearance.
