I profili di estrusione di alluminio standard affidabili sono la soluzione definitiva?

Need parts quickly for your project? Custom extrusions can mean long lead times and high tooling costs. I know standard aluminum extrusion profiles might offer a faster, more economical path.

Based on my manufacturing experience here at ALUT, standard aluminum extrusion profiles are common, pre-designed shapes like angles, tubes, or channels. We produce these using widely available, non-proprietary dies, making them readily accessible and generally more cost-effective for many general-purpose applications compared to fully custom parts.

But are these common profiles always the right fit for every need? Understanding exactly what defines them, the typical materials used, the expected tolerances, and their most common applications is key to making an informed decision. Let’s examine the details.

What are standard aluminum extrusion profiles exactly?

Confused by the terms “standard” versus “custom” aluminum profiles? Choosing incorrectly can waste valuable time and money if a readily available standard part could have done the job. Let me clarify the distinction based on my experience.

From my perspective manufacturing both types at ALUT, standard aluminum extrusion profiles are fundamentally shapes produced using existing, common dies owned either by extrusion companies like ours or by industry suppliers. Think of common angles, channels (U and C shapes), T-sections, round tubes, square tubes – these are readily available shapes not unique to one specific customer’s design.

The term “standard” primarily refers to the design origin and availability of the die used to create the profile, rather than indicating lower quality. These dies have been designed to produce shapes that serve a wide range of common structural and architectural purposes. Because the design and tooling costs are already absorbed and spread across many users, these profiles offer significant advantages in terms of cost and availability for suitable applications.

Key Characteristics

• Common Shapes: They encompass a range of simple, widely used geometric forms. While the list can be extensive, core examples include:
  • Angles: L-shaped profiles with equal or unequal legs.
  • Channels: U-shaped or C-shaped profiles with parallel flanges.
  • Tees: T-shaped profiles.
  • Zees: Z-shaped profiles.
  • Beams: I-beams or H-beams (though less common as standard extrusions compared to rolled steel).
  • Tubes: Round, square, or rectangular hollow profiles.
  • Bars: Solid flat, square, or round bars.
• Existing Dies: The crucial factor is that the extrusion die already exists and is considered standard by the manufacturer or the industry. No new custom tooling investment is required by the customer.
• Wide Availability: Many common standard aluminum extrusion profiles are often held in stock by metal service centers or distributors. Even if not stocked, manufacturers like ALUT can produce them relatively quickly using existing dies, avoiding the lead time needed for custom die creation.
• Cost-Effectiveness: Avoiding the upfront custom tooling cost makes standard profiles significantly cheaper for applications where their shape is suitable, especially for lower volume needs.

Standard vs. Custom Distinction

Choosing standard profiles is ideal when your project can utilize these common shapes effectively, prioritizing speed and lower initial cost. However, if your design demands a unique shape or integrated features not found in standard offerings, then custom extrusion becomes necessary.

Which alloys make standard aluminum extrusion profiles?

Does choosing “standard” mean you’re limited to basic or weak alloys? Material choice is critical for performance, and I know buyers worry about this. Let me explain the typical materials used for these common profiles.

In my experience manufacturing countless tons of profiles at ALUT, standard aluminum extrusion profiles are most commonly made from versatile 6000 series alloys, primarily 6063 and 6061. We typically use 6063 for its excellent extrudability and superior surface finish (ideal for architectural applications), while 6061 is chosen when higher structural strength is required.

While aluminum extrusion can utilize a vast range of alloys, the selection available for standard, readily available profiles is typically more focused. The goal is to offer materials that meet the needs of the broadest range of common applications cost-effectively.

Focus on 6xxx Series Alloys

The 6000 series alloys, which use magnesium and silicon as the primary alloying elements, hit a sweet spot for extrusions, offering a great combination of properties:

• Good to excellent extrudability (flow well through the die).
• Good strength (can be significantly increased by heat treatment).
• Good corrosion resistance.
• Good weldability and machinability.
• Respond well to finishing processes like anodizing.

The Two Main Players: 6063 vs. 6061

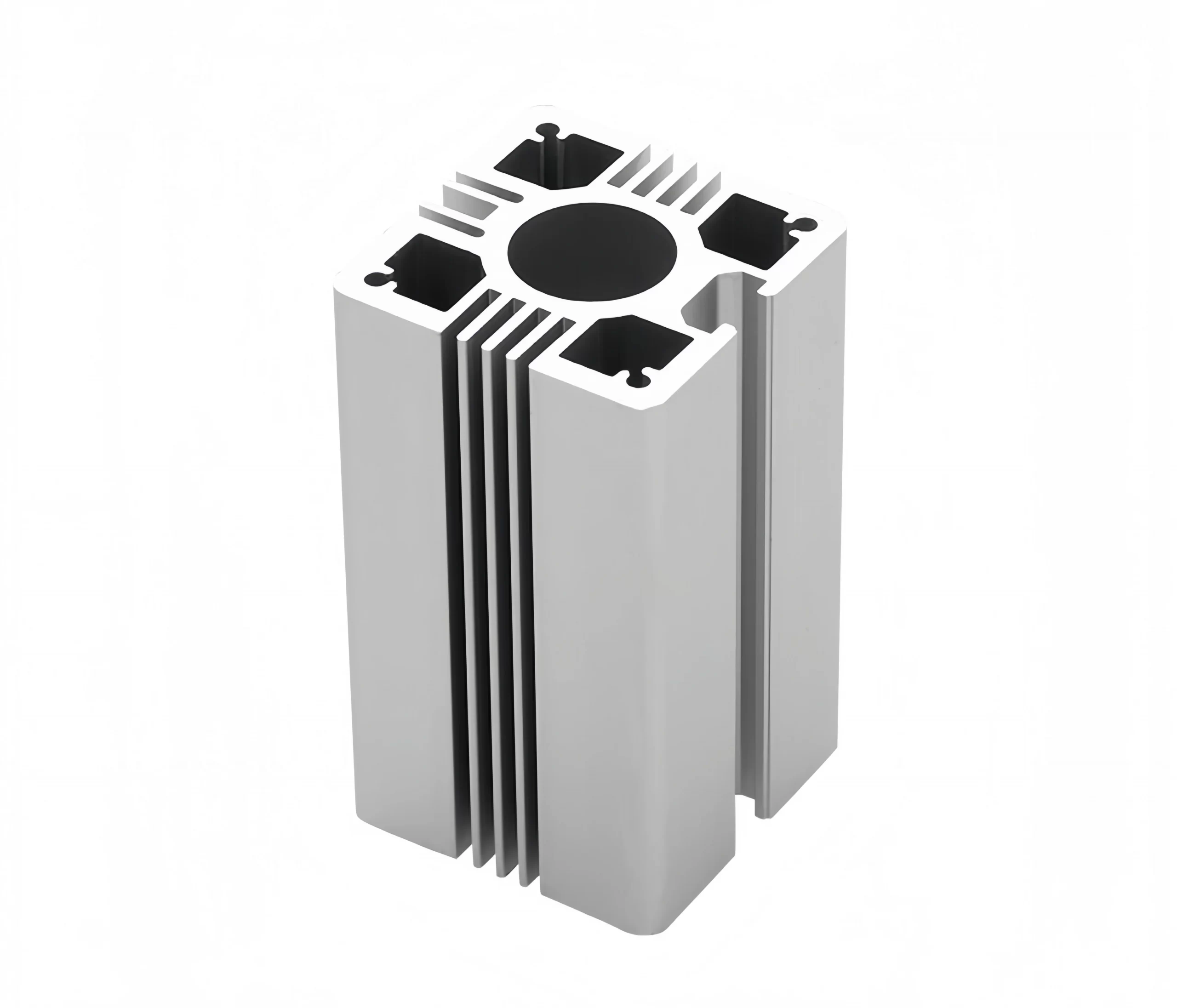

• 6063 Aluminum:
  • Characteristics: Often called the “architectural alloy.” Known for its excellent surface finish capabilities (ideal for smooth anodizing), very good corrosion resistance, and top-tier extrudability, allowing for complex standard shapes. Its strength is moderate but sufficient for many applications.
  • Common Tempers: Typically supplied in T5, T52, or T6 tempers. T5 offers good strength achieved by cooling from extrusion and artificial aging. T6 involves solution heat treating and artificial aging for higher strength.
  • Typical Uses: Window frames, door frames, curtain walls, railings, trim, pipe, conduit, furniture, architectural shapes, simpler heat sinks. This is very often the default choice for standard aluminum extrusion profiles where finish matters most.
• 6061 Aluminum:
  • Characteristics: A widely used structural alloy. Offers higher strength than 6063, good machinability, and good weldability. Its surface finish after extrusion is generally good but typically not as smooth or suitable for highly cosmetic anodizing as 6063.
  • Common Tempers: Most commonly supplied in the T6 or T651 temper for maximum strength. T6 involves solution heat treating and artificial aging. T651 adds a stress-relieving stretching step.
  • Typical Uses: Structural framing, base plates, machine parts, jigs and fixtures, transportation components (truck frames, marine), bridge railings. Chosen for standard aluminum extrusion profiles when load-bearing capacity is a primary concern.

Why Not Other Alloys for Standard Profiles?

While alloys like the 5xxx series (marine applications) or 7xxx series (aerospace, high strength) offer specialized properties, they are less common as standard, off-the-shelf profiles because:

• They may be more difficult or expensive to extrude.
• Demand is more niche compared to the broad uses of 6061 and 6063.
• Specific high-performance applications usually warrant custom profile designs anyway.

Therefore, when sourcing standard aluminum extrusion profiles, you can confidently expect them to be made primarily from 6063 or 6061 alloys, offering a reliable balance of properties suitable for a vast range of common applications.

Understanding these common alloy choices helps ensure you select standard profiles with appropriate properties for your project needs.

What tolerances apply to standard aluminum extrusion profiles?

Worried about whether standard parts will fit together correctly? Tolerances define the expected level of dimensional accuracy. Let me explain the typical precision you can expect from standard aluminum extrusion profiles.

Based on the industry norms that we adhere to at ALUT, standard aluminum extrusion profiles are manufactured to meet established tolerance ranges. These are published by industry organizations like The Aluminum Association (in North America) or CEN (in Europe) and define acceptable variations in dimensions and geometry for general commercial use.

Tolerances are a critical part of any manufacturing specification. They acknowledge that creating parts with absolutely perfect dimensions is impossible and define an acceptable range of variation. For standard aluminum extrusion profiles, these ranges are designed to ensure functionality and interchangeability for common applications while keeping the manufacturing process cost-effective.

Understanding Standard Tolerance Ranges

• Published Standards: Key documents like ANSI H35.2 (USA) and EN 755-9 (Europe) contain extensive tables detailing standard tolerances. These tables cover various aspects:
  • Cross-Sectional Dimensions: Tolerances for width, height, wall thickness, gap dimensions, screw bosses, etc. These often depend on the size of the dimension (larger dimensions typically have wider tolerances).
  • Geometric Tolerances: Tolerances for straightness (how much a profile can deviate from a straight line over a given length), twist (rotation along the length), flatness (deviation from a perfect plane), and angularity (variation in angles).
• Typical Values (Illustrative): While the specific values vary greatly depending on the profile size, shape complexity, and the particular dimension, standard tolerances are generally wider than those achieved through precision extrusion. For example:
  • A wall thickness might have a standard tolerance of ±0.010″ to ±0.020″ (±0.25mm to ±0.50mm).
  • An overall width might be ±0.020″ to ±0.050″ (±0.50mm to ±1.27mm).
  • Standard straightness is often around 0.0125 inches per foot of length (approx. 1mm per meter).
  • Standard angularity might be ±1 degree.
• “Commercial Tolerances”: These standard ranges are often referred to as “commercial tolerances,” indicating they are suitable for most general commercial applications.

Why Standard Tolerances Are Wider

The tolerances for standard aluminum extrusion profiles reflect a balance between achievable precision and manufacturing cost-efficiency:

• General Purpose Dies: Standard dies are designed for robustness and wide application, not necessarily for the absolute highest precision on every feature.
• Standard Process Controls: While well-controlled, the processes used for standard extrusions may not involve the intensive monitoring, slower speeds, and hyper-precise adjustments characteristic of precision extrusion.
• Cost-Effectiveness: Holding tighter tolerances significantly increases manufacturing costs (better tooling, slower production, more inspection). Standard tolerances allow for efficient, lower-cost production suitable for the majority of applications.

Implications for Use

This means that standard aluminum extrusion profiles are:

• Suitable for many jobs: Perfectly adequate for structures, frames, architectural elements, and general fabrications where minor dimensional variations are acceptable.
• May require adjustments: If extremely tight fits or high-precision alignment is needed, secondary machining (milling, drilling) might be necessary on standard profiles to achieve the required accuracy on specific features.
• Predictable: While wider than precision tolerances, standard tolerances are defined and consistent, allowing designers to account for potential variations.

When sourcing standard aluminum extrusion profiles, you should expect parts manufactured within these well-defined commercial tolerance ranges, ensuring reliable function for their intended general-purpose roles. If your application demands tighter control, then custom or precision extrusion should be considered.

Where are standard aluminum extrusion profiles commonly used?

Wondering if these widely available standard aluminum extrusion profiles fit into your specific industry or project type? Their versatility might surprise you; I’ve seen them successfully utilized in an incredibly broad range of applications across many sectors.

From my experience supplying diverse industries from ALUT, standard aluminum extrusion profiles are extremely versatile and commonly used across the board. We see major applications in building and construction (like window and door frames), industrial framing systems (especially T-slots), furniture manufacturing, architectural railings and trim, basic heat sinks, and countless general fabrication projects.

The popularity and widespread use of standard aluminum extrusion profiles stem from their favorable combination of adequate performance for many tasks, cost-effectiveness, and ready availability. Their common shapes are foundational elements in numerous products and structures. Let’s explore some key application areas:

Building and Construction

This sector is a massive user of standard aluminum extrusion profiles:

• Windows and Doors: Standard hollow and solid profiles form the backbone of frames and sashes for residential and commercial buildings. 6063 alloy is prevalent here due to its finish.
• Curtain Walling & Storefronts: Simpler mullion and transom profiles are often standard designs.
• Railings and Balustrades: Standard tube, square, and rectangular profiles are frequently used for handrails, posts, and pickets.
• Gutters and Downspouts: Standard channel or custom-like standard shapes are employed.
• Interior Trim and Architectural Features: Standard angles, channels, and flat bars are used for corner guards, dividers, ceiling grids, and decorative trim.
• Solar Panel Mounting Frames: Standard L-brackets, channels, and rails (often 6061) form mounting structures.

Industrial Machinery and Automation

• Modular Framing Systems (T-Slots): Perhaps the most recognizable industrial use. Standardized T-slot profiles (in various metric and imperial sizes, usually 6061 or 6063) allow for rapid and flexible construction of machine bases, guards, workstations, conveyors, and robotic enclosures.
• Jigs, Fixtures, and Tooling: Standard bar stock, angles, and channels are easily machined for custom tooling.
• Conveyor Systems: Profile shapes form the side frames and supports.

Furniture and Fixtures

• Frames: Standard square, rectangular, and round tubes are used for legs and frames of tables, chairs, desks, and shelving units, particularly in office and institutional furniture.
• Display Systems: Used in retail fixtures, exhibition stands, and signage frames.

Electrical and Electronics

• Basic Heat Sinks: While complex heat sinks are custom, simpler standard finned profiles exist for cooling lower-power components.
• Enclosures: Standard rectangular tubing or custom-like standard shapes can form simple electronic housings.
• Mounting Rails: Standard profiles serve as DIN rails or other component mounting structures.

Transportation

• Trim and Finishing: Standard angles and channels are used for decorative or protective edging in trailers, RVs, and boats.
• Racks and Carriers: Roof racks, cargo carriers, and internal shelving often utilize standard tube and bar profiles.

DIY and General Fabrication

Due to their accessibility through metal suppliers and hardware stores, standard aluminum extrusion profiles are favorites for hobbyists, inventors, and small fabrication shops for countless custom projects.

The widespread adoption across these fields underscores the fundamental utility and economic advantages offered by standard aluminum extrusion profiles for applications where their common shapes and properties align with the project requirements.

Conclusione

Standard aluminum extrusion profiles, typically 6063/6061 alloys, offer cost-effective, readily available solutions with defined commercial tolerances. They are widely used across construction, industry, furniture, and general fabrication applications.
