Trovare il miglior alluminio per piegare con successo?

Trying to bend aluminum only to have it crack or kink? I know how frustrating it is when material choice leads to production headaches and wasted parts.

From my experience supplying aluminum, the best aluminum for bending easily combines high ductility and low yield strength. Alloys like 3003-O or 5052-H32 are excellent choices when ease of forming is the top priority.

Choosing the right aluminum involves more than just picking the softest option. What truly defines bendability, which alloys excel, is softer always better, and how can you avoid cracking? Let’s explore these critical factors.

What alloy is the best aluminum for bending easily?

Faced with a spec sheet calling for a bent aluminum part, where do you even start with alloy selection? Choosing wrong can lead to immediate failure during forming.

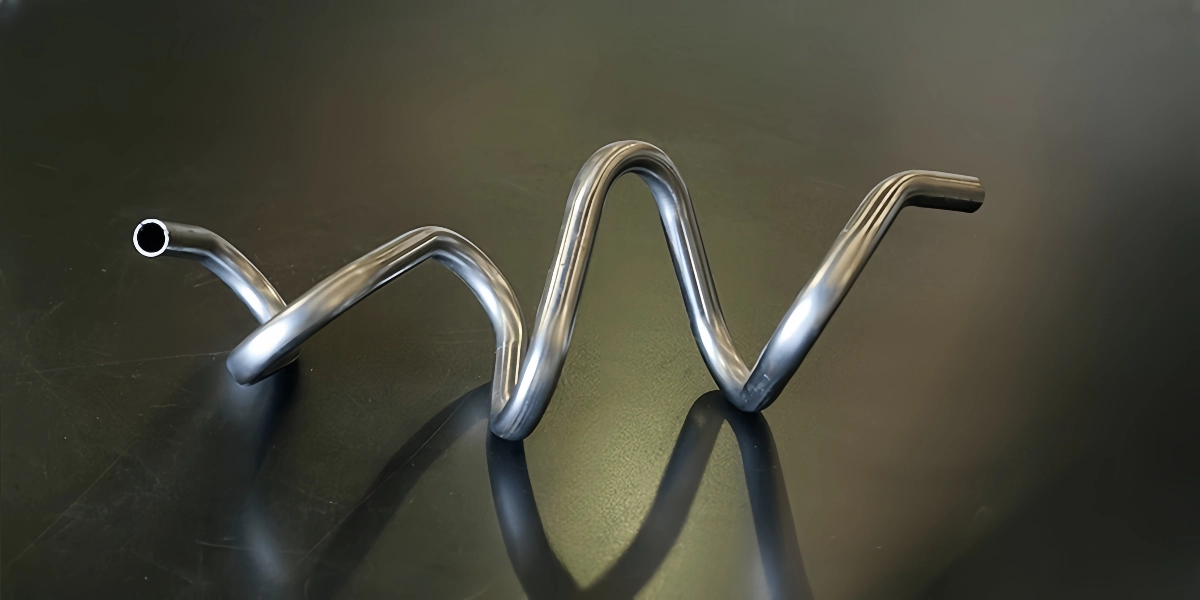

When customers ask me for the absolute easiest aluminum alloy to bend, I typically point them towards 3003 in the ‘O’ (annealed) temper. 5052 in an O or H32 temper is also exceptionally formable and offers more strength.

Determining the single “best” alloy for easy bending depends slightly on the definition of “easy,” but generally, it refers to alloys that can undergo significant deformation without fracturing or requiring excessive force. This usually correlates with lower strength and higher ductility.

Top Candidates for Easy Bending

Based on material properties and common industry practice, certain aluminum alloys consistently rank high for formability:

• 3003 Aluminum: This is often considered the workhorse for applications requiring excellent formability. It’s an aluminum-manganese alloy.
  • Key Benefit: Its primary advantage is its outstanding workability, including bendability. It can typically handle very tight bend radii without cracking, especially in the annealed (‘O’) temper.
  • Limitation: It has relatively low strength compared to other common alloys like 6061.
  • Common Uses: Often found in applications where formability is key, such as chemical equipment, cookware, ductwork, fuel tanks, and architectural trim.
• 5052 Aluminum: An aluminum-magnesium alloy, known for good workability combined with higher strength than 3003.
  • Key Benefit: Offers very good bendability, particularly in softer tempers like ‘O’ or H32/H34. It also boasts good corrosion resistance, especially in marine environments.
  • Strength Comparison: Stronger than 3003 but generally not as strong as 6061-T6.
  • Common Uses: Widely used for marine components, fuel tanks, chassis parts, pressure vessels, and sheet metal work requiring good formability and durability.
• 1100 Aluminum: This is essentially commercially pure aluminum (99.0% minimum aluminum).
  • Key Benefit: Extremely ductile and easy to form and bend due to its high purity and low strength. Excellent corrosion resistance.
  • Limitation: Very low mechanical strength, limiting its use in structural applications.
  • Common Uses: Often used for applications where extreme formability is needed and strength is not a primary concern, such as chemical equipment, decorative trim, fin stock, and electrical conductors.

Why These Alloys Excel

These alloys bend easily primarily because they possess:

1. Low Yield Strength: They begin to deform permanently under relatively low stress.
2. High Elongation: They can stretch significantly before fracturing, accommodating the tensile stress on the outer bend radius.
3. Favorable Grain Structure: Their metallurgical structure in softer tempers allows grains to deform and slide past each other more readily.

Here’s a simple comparison focusing on bendability:

Therefore, if the primary requirement is simply the ease of forming the bend with minimal risk of cracking and the ability to achieve tight radii, 3003-O or 1100-O are often the “best” choices. However, if some strength is also needed, 5052 in a suitable temper becomes a very strong contender.

What defines the best aluminum for bending properties?

We know some alloys bend easier, but what specific material characteristics should I look for on a datasheet to predict bendability? It’s not just about alloy numbers.

From an engineering standpoint, I find the best aluminum for bending properties are defined by high elongation (indicating ductility) and a relatively low yield strength. A larger gap between yield and ultimate tensile strength also helps.

Identifying the “best” aluminum for bending isn’t just about picking a specific alloy number; it’s about understanding the underlying mechanical properties that govern how a material behaves under bending stress. When you bend a piece of aluminum, the outer surface experiences tension (stretching), while the inner surface experiences compression. The material must be able to withstand this deformation without failing.

Key Mechanical Properties for Bendability

Several standard mechanical properties, typically found on material datasheets, provide strong indicators of an aluminum alloy’s suitability for bending:

• Elongation (%): This is perhaps the single most important indicator of ductility – the ability of a material to deform plastically (permanently) without fracturing. It’s measured during a tensile test as the percentage increase in length of a specimen before it breaks. Higher elongation values mean the material can stretch more before failing, which is crucial for accommodating the tension on the outer radius of a bend. Alloys and tempers with elongation values typically above 10-15% are considered reasonably formable, while those above 20-25% are excellent.
• Yield Strength (YS): This is the stress at which the material begins to deform plastically (permanently). Lower yield strength means less force is required to initiate the bend. While very low yield strength makes bending easy, it also means the final part will be less resistant to deformation in service.
• Ultimate Tensile Strength (UTS): This is the maximum stress the material can withstand while being stretched or pulled before necking (local thinning) and eventual fracture.
• Gap Between Yield Strength (YS) and Ultimate Tensile Strength (UTS): A larger difference between UTS and YS indicates a greater capacity for work hardening and a larger plastic deformation range before failure. Materials with a small gap between YS and UTS tend to be more brittle and may fracture soon after yielding begins, making them poor candidates for bending. A wide gap suggests the material can endure significant plastic deformation after yielding starts.
• Hardness: While not a direct measure of bendability, hardness (often measured in Brinell or Rockwell scales) generally correlates inversely with ductility. Softer materials (lower hardness) are typically more ductile and easier to bend. Temper designations directly relate to hardness and strength levels.

Interpreting the Properties

• High Elongation + Low Yield Strength = Easy Bending: This combination allows the material to stretch significantly on the outer radius without breaking and requires less force to initiate the bend. This is typical of annealed (‘O’ temper) alloys like 1100, 3003, and 5052.
• High Elongation + Moderate Yield Strength = Good Balance: Alloys like 5052-H32 or 6061-T4 offer reasonable strength while still possessing good elongation, making them bendable with appropriate techniques and radii.
• Low Elongation + High Yield Strength = Difficult Bending: High-strength tempers like T6 have significantly reduced elongation. Bending them requires much larger radii, more force, and carries a higher risk of cracking.

Here’s a table illustrating the concept with typical values (note: exact values vary):

Therefore, when evaluating datasheets, focus primarily on maximizing elongation while ensuring the yield strength is low enough for your forming process but high enough for the final application’s needs. The gap between UTS and YS provides further insight into the material’s toughness during forming.

Is softer temper the best aluminum for bending always?

It’s common advice: “If you want to bend aluminum, use the softest temper possible!” But is that always the right strategy for the best overall result?

While it’s true that softer tempers like ‘O’ (annealed) or T4 bend most easily with the lowest risk of cracking, they also result in a weaker final part. The best temper often involves a trade-off, selecting one that’s formable enough for the required bend but strong enough for the application.

The temper designation of an aluminum alloy signifies the treatment it has undergone to achieve specific mechanical properties, primarily strength and hardness. These treatments significantly impact ductility and, consequently, bendability.

Understanding Common Tempers and Bendability

• O Temper (Annealed): This is the softest, weakest, and most ductile state for any given alloy. It’s achieved by heating the aluminum to a specific temperature and then cooling it slowly. O temper offers the highest elongation and lowest yield strength, making it the easiest to bend with the tightest possible radii and lowest risk of cracking.
• H Tempers (Strain-Hardened – Non-Heat-Treatable Alloys): Used for alloys like 3003 or 5052 that cannot be strengthened by heat treatment. Strain hardening (cold working) increases strength but reduces ductility. Tempers like H1x (strain hardened only), H2x (strain hardened and partially annealed), and H3x (strain hardened and stabilized) exist. Generally, the higher the second digit (e.g., H18 vs. H14 vs. H12), the harder and less bendable the material. Hx2 and Hx4 tempers are often good compromises for formability.
• T Tempers (Thermally Treated – Heat-Treatable Alloys): Used for alloys like 6061 or 6063.
  • Temperamento T4: Solution heat-treated and naturally aged. Stronger than O temper but still relatively ductile and significantly more formable than T6. Often a good choice when bending is needed followed by artificial aging to T6 for higher strength (though aging after forming can be complex).
  • T6 Tempra: Solution heat-treated and artificially aged. This produces the highest strength for these alloys but significantly reduces ductility and elongation. Bending T6 temper is challenging, requires much larger bend radii, more force, and has a higher risk of cracking, especially on the outer bend surface. T5 temper is similar but slightly less strong and potentially slightly more formable than T6.

The Trade-Off: Bendability vs. Final Strength

The statement “softer is better for bending” is true only if “better” means “easiest to perform the bend without failure.”

• Advantage of Soft Tempers (O, T4, Hx2/Hx4): Lower force required, smaller minimum bend radius possible, lower risk of cracking during the operation.
• Disadvantage of Soft Tempers: The final bent part will have lower strength, stiffness, and hardness, which might not be sufficient for the intended application.

Conversely:

• Advantage of Hard Tempers (T6, Hx8): The final part possesses high strength and rigidity.
• Disadvantage of Hard Tempers: Difficult to bend, requires large radii, specialized tooling (like mandrel benders), precise process control, and still carries a higher risk of fracture. Often impractical or impossible for complex bends.

Finding the “Best” Balance

The truly “best” aluminum temper for bending depends on the specific project requirements:

1. What is the minimum required strength/hardness for the final part? This sets a lower limit on the acceptable temper.
2. What is the required bend geometry (radius, angle)? Tighter bends demand more ductile (softer) tempers.
3. What bending process and tooling are available? More sophisticated methods (like mandrel bending) can handle slightly harder materials or tighter radii.

Often, the optimal solution involves selecting a temper that is just ductile enough to make the required bend successfully with the available equipment, while still providing adequate strength. This might be an intermediate temper like 5052-H32 or 6061-T4.

Here’s a conceptual table for 6061 alloy:

Therefore, while softer tempers bend more easily, they aren’t always the overall best choice if the final part needs significant strength. The best approach involves understanding the trade-offs and selecting the temper that meets both formability and final performance criteria.

How to prevent cracking the best aluminum for bending?

You’ve picked a great, ductile aluminum alloy and temper, but cracking still happens sometimes during bending. How can I ensure a smooth, defect-free bend every time?

Based on my manufacturing troubleshooting, preventing cracks involves several key steps: always respect the material’s minimum bend radius, use proper lubrication, ensure smooth tooling, control the bending speed, and utilize supportive techniques like mandrel bending, especially for tighter curves or thinner walls.

Even when using aluminum alloys known for good bendability, cracking can occur if the bending process isn’t executed correctly or pushes the material beyond its limits. Preventing fractures requires careful attention to material selection, tooling, technique, and understanding the physics involved.

1. Material Selection (Revisited)

• Choose Ductile Alloys/Tempers: As discussed previously, start with alloys like 3003, 5052, 1100, or structural alloys like 6061/6063 in their softer tempers (O, T4, Hx2/Hx4). These have higher elongation, allowing them to stretch more on the outer bend radius without failing. Avoid high-strength tempers (T6, Hx8) for tight bends unless absolutely necessary and specifically engineered for.
• Check Material Quality: Ensure the aluminum is free from pre-existing defects, inclusions, or damage that could act as stress concentrators and initiate a crack.

2. Respect the Minimum Bend Radius

• Concept: Every material, thickness, and temper has a minimum radius it can be bent to without excessive stress or fracture. Bending tighter than this limit drastically increases the risk of cracking on the outer surface (due to excessive tensile strain) or buckling on the inner surface.
• Guidelines: Minimum bend radius is often expressed as a multiple of the material thickness (e.g., 2T, 3T). Softer materials/tempers allow for smaller multiples (tighter bends). Thicker materials generally require larger radii. Always consult material datasheets or reputable engineering resources for recommended minimum bend radii for your specific alloy, temper, and thickness. Never try to force a bend tighter than recommended.

Here’s an illustrative table (guidelines only, always verify for specific conditions):

3. Proper Bending Technique and Tooling

• Use Appropriate Method: For tight radii or thin walls, mandrel bending is strongly recommended. The internal mandrel supports the pipe/tube wall, preventing collapse and reducing stress concentration. For larger radii, roll bending or even careful compression bending might suffice. Avoid simple ram bending for critical applications.
• Smooth Tooling: Ensure the bend dies, clamp dies, pressure dies, and mandrels are smooth, polished, and free from nicks or damage. Surface imperfections on tooling can transfer to the aluminum and create stress risers where cracks can start.
• Correct Tool Radius: The radius on the bend die must match the desired inside bend radius of the part.
• Lubrication: Using an appropriate bending lubricant reduces friction between the aluminum and the tooling. This allows the material to slide more easily during deformation, reducing tensile stress on the outer surface and minimizing the risk of galling or tearing.
• Controlled Speed: Bending too quickly can increase stress and the likelihood of cracking, especially with less ductile materials. A smooth, controlled bending speed is generally preferred.

4. Consider Grain Direction (Sheet/Plate)

• For aluminum sheet or plate, bending across the grain direction (the direction the material was rolled) is generally preferred as the material tends to be slightly more ductile in this orientation. Bending parallel to the grain direction can sometimes increase the risk of cracking along grain boundaries, especially for tighter bends or less formable alloys. This is less of a factor for extruded tubes/pipes where the grain structure is more aligned with the length.

5. Temperature (Warm Forming)

• In some difficult cases, gently heating the aluminum (well below annealing temperatures) can temporarily increase its ductility and make bending easier, reducing the risk of cracking. This “warm forming” requires careful temperature control and may affect the final temper/properties, so it’s used selectively.

By carefully selecting the right material and temper, respecting minimum bend radii, using appropriate, well-maintained tooling and techniques (especially mandrel support), controlling speed, and potentially considering grain direction, the risk of cracking during bending can be significantly minimized.

Conclusione

Selecting the best aluminum for bending involves balancing ease of forming (ductility, low yield strength) with final part strength. Alloys like 3003-O or 5052-H32 bend easily. Preventing cracks requires respecting bend radii and using proper techniques like mandrel bending.
