Why Is an Amazing Heat Sink for LED Bulb Absolutely Essential?

Struggling with LED bulbs that flicker or burn out too fast? You’re likely facing a heat problem. I know that understanding the role of a quality heat sink for led bulb is the crucial first step to solving it.

From my direct experience in manufacturing, an amazing heat sink for led bulb is non-negotiable. It efficiently pulls damaging heat away from the sensitive LED components. This simple function is the key difference between a bulb that lasts years and one that fails prematurely. [Insert brief personal story about seeing the difference good heat sinks make for a client’s product reliability].

Now that we know how critical they are, let’s dig deeper. Why do these seemingly simple components play such a vital role? Let’s break down the specifics.

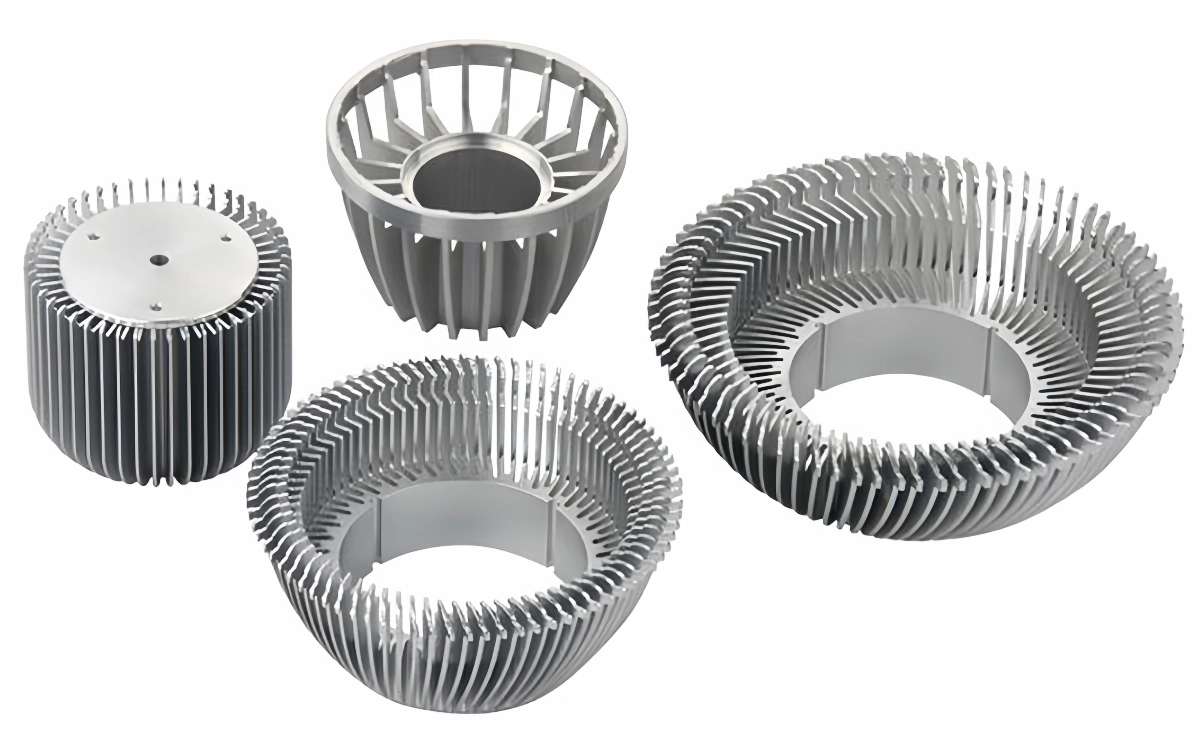

Why Is a Heat Sink for LED Bulb Necessary?

Seen LEDs dim or fail unexpectedly? It’s often invisible heat building up inside. I’ve seen countless times how managing this thermal load with a proper Seen LEDs dim or heat sink for led bulb is vital for reliable performance.

In my view, LED bulbs need heat sinks because, despite their efficiency, they still generate significant heat right at the LED chip. This heat, if trapped, quickly degrades the chip and other components, drastically shortening the bulb’s useful life. [Insert brief personal story about a design challenge involving unexpected heat buildup in an early LED project.]

Let’s explore this further. While LEDs are far more efficient than old incandescent bulbs, converting electricity to light isn’t a perfect process. The inefficiency manifests primarily as heat, concentrated in a very small area – the semiconductor junction within the LED chip.

How LEDs Generate Heat

When electricity passes through the semiconductor material in an LED, electrons release energy. Most of this energy becomes light, but a portion is inevitably lost as heat. This happens right at the tiny P-N junction where light is emitted. Unlike incandescent bulbs that radiate heat outward effectively, LEDs trap much of this heat internally.

The Critical Role of Junction Temperature (Tj)

The temperature at this P-N junction (Tj) is the single most critical factor determining an LED’s lifespan and performance. Every degree rise above the optimal operating temperature range significantly accelerates the degradation process. A good heat sink for led bulb is designed specifically to keep the Tj as low as possible. If the heat isn’t removed effectively, the Tj climbs rapidly.

Why Efficiency Isn’t Enough

You might think, “LEDs are 80-90% efficient, so heat isn’t a big issue.” While the percentage of waste heat is lower than older technologies, the concentration of that heat is much higher due to the small size of the LED chip. Furthermore, the components within the LED (the chip, phosphor coating, and drivers) are far more sensitive to heat than a simple filament. Even a small amount of trapped heat can cause big problems.

Here’s a simple comparison:

Therefore, the heat sink for led bulb isn’t an optional add-on; it’s a fundamental requirement dictated by the physics of how LEDs work and their sensitivity to thermal stress. Without it, reliable, long-lasting LED lighting simply isn’t possible. It isn’t an optional add-on; it’s a fundamental requirement dictated by the physics of how LEDs work and their sensitivity.

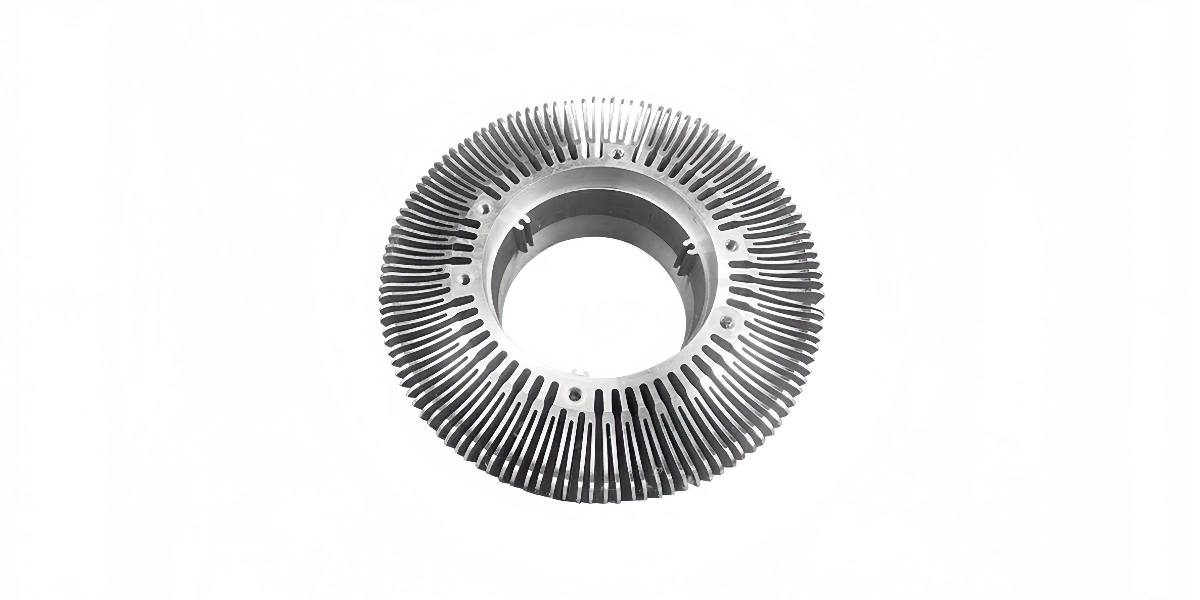

What is the main purpose of a heat sink for LED bulb?

Ever looked at an LED bulb and wondered what that finned metal part actually does? It’s definitely not just for decoration! I know its primary function is absolutely critical for the bulb to even work properly.

I believe the main purpose is straightforward: effective thermal management. The heat sink for led bulb acts like a highway for heat, actively drawing it away from the hot LED chip and dispersing it safely into the surrounding air. This keeps the LED operating within its ideal temperature range. [Insert brief story about explaining heat sink function using a simple analogy to a client.]

The core job of a heat sink for led bulb is to facilitate the transfer of thermal energy. It achieves this through fundamental principles of heat transfer, primarily conduction and convection.

The Path of Heat: From Chip to Air

1. Generation: Heat is generated within the tiny LED semiconductor junction.
2. Conduction (Internal): This heat must first conduct through the LED package materials and the thermal interface material (TIM) connecting the package to the heat sink base. The quality of this connection is critical.
3. Conduction (Heat Sink): The heat then travels via conduction through the body of the heat sink material itself (often aluminum) from the base towards the outer surfaces or fins. The material’s thermal conductivity is key here.
4. Convection: Finally, the heat moves from the heat sink’s surfaces into the cooler surrounding air. This process is called convection. The larger the surface area exposed to the air, the more effective the convection.
5. Radiation: Some heat is also dissipated via thermal radiation from the heat sink for led bulb surfaces, though convection is usually the dominant mode in typical LED bulb applications. Some heat is also dissipated via thermal radiation from the heat sink surfaces, though convection is usually the dominant mode in

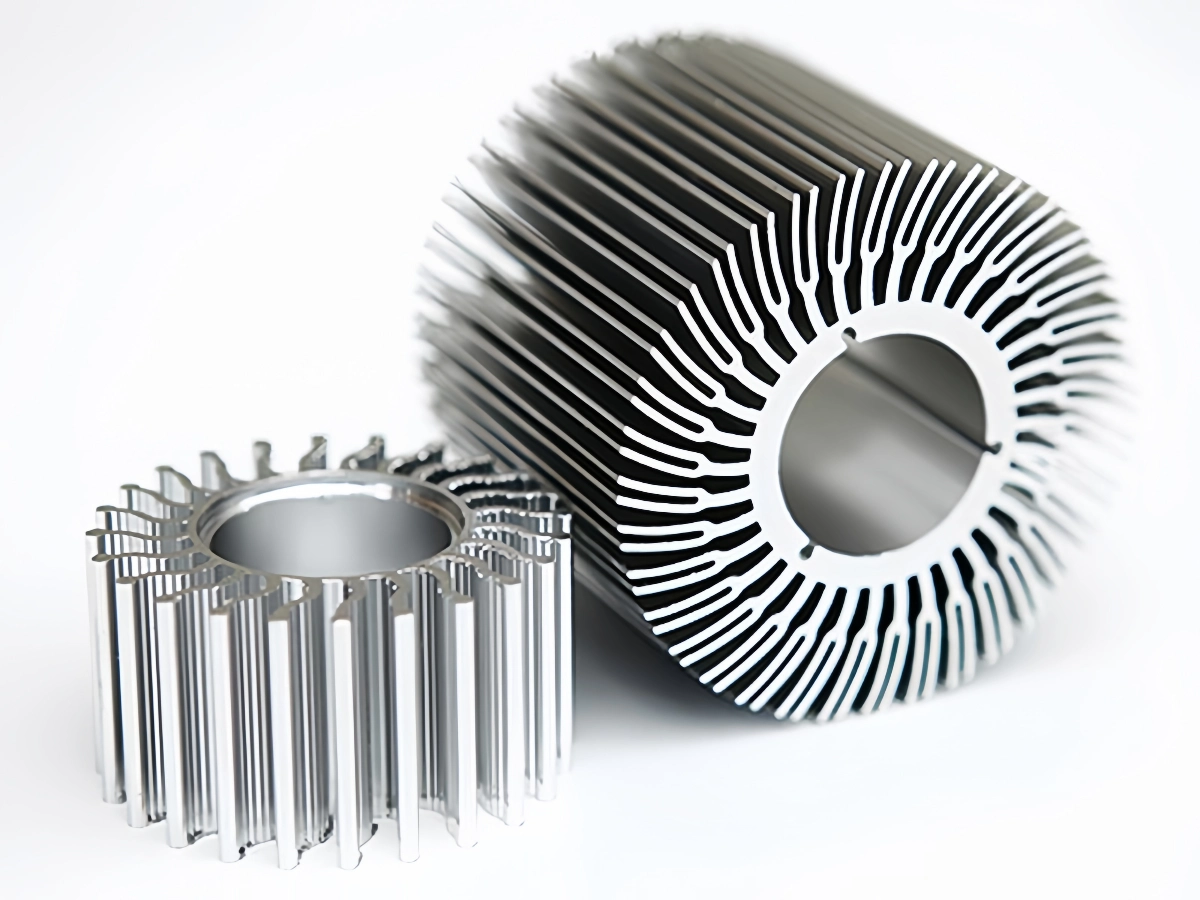

Design Features That Boost Cooling

Manufacturers like us, ALUT, don’t just choose a lump of metal. Heat sink for led bulb design is engineered:

• Material Choice: Selecting materials with high thermal conductivity (like aluminum) ensures heat travels quickly away from the source.
• Surface Area: Incorporating fins, pins, or complex geometries dramatically increases the surface area available for convection, allowing heat to escape more rapidly. More surface area = better cooling. Incorporating fins, pins, or complex geometries dramatically increases the
• Airflow: The design often considers natural airflow patterns. Fin spacing and orientation are optimized to encourage air movement across the surfaces.
• Base Thickness: The base needs to be thick enough to spread heat effectively from the small LED source area across the wider fin structure.

Here are the key functions summarized:

Essentially, the heat sink for led bulb provides a low-resistance path for heat to escape, preventing the catastrophic temperature buildup that would otherwise destroy the LED. Its purpose is purely functional and directly tied to the bulb’s performance and lifespan.

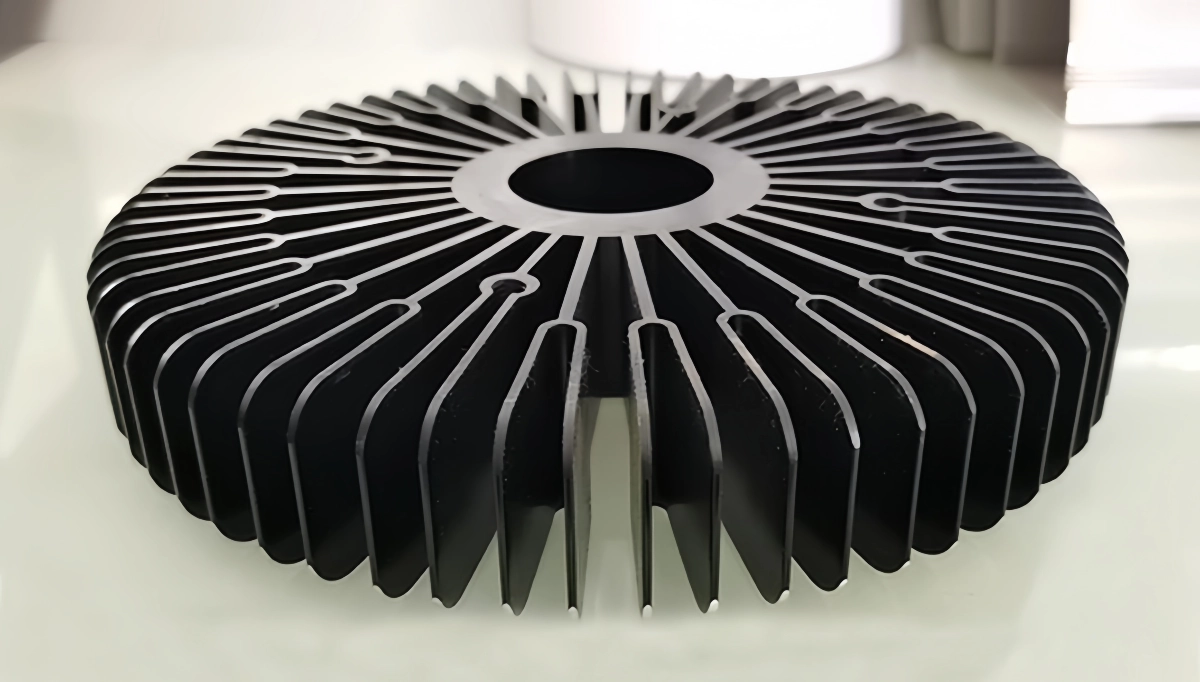

What Happens When the Heat Sink for LED Bulb Isn’t Effective?

Ever purchased LED bulbs expecting years of use, only to have them fail disappointingly fast? A poor or inadequate heat sink for led bulb is very often the hidden culprit. I’ve seen the expensive consequences of cutting corners on thermal design firsthand.

From what I’ve consistently observed in testing and analyzing failures, a bad or missing heat sink for led bulb inevitably leads to overheating. This triggers a cascade of negative effects: significantly reduced brightness, unwanted color shifts, and a drastically shortened operational life. Complete, premature failure is the common outcome. [Insert brief anecdote about a client who faced costly warranty returns due to using bulbs with substandard heat sinks.]

When a heat sink for led bulb fails to do its job, the excess heat trapped around the LED chip acts like a poison, slowly degrading the critical components. The consequences are predictable and detrimental to the user experience and the product’s reputation.

Accelerated Lumen Depreciation

This is a fancy term for the bulb getting dimmer over time. All LEDs dim gradually, but excessive heat dramatically speeds up this process. The heat damages the phosphor coating (which converts the blue light from the chip into white light) and degrades the semiconductor material itself. A bulb that should maintain good brightness for 25,000 hours might become noticeably dim in just a few thousand hours, or even hundreds, if it overheats constantly. This is a fancy term for the bulb getting dimmer over time.

Unwanted Color Shift

Heat doesn’t just affect brightness; it also impacts the color of the light emitted. As the phosphor and chip degrade under thermal stress, the correlated color temperature (CCT) can shift. A bulb that started as ‘Warm White’ might drift towards a cooler, bluer hue, or vice-versa. This is often unacceptable in applications where consistent color rendering is important (like retail displays or art lighting).

Component Damage and Outright Failure

The LED chip isn’t the only part affected. The driver circuitry, which regulates power to the LED, also contains components sensitive to heat (capacitors, ICs). Overheating can cause these driver components to fail, leading to flickering or the bulb simply dying completely, even if the LED chip itself hasn’t fully degraded. Solder joints can weaken, and plastics can become brittle.

Potential Safety Concerns (Less Common but Possible)

In extreme cases of poor design or manufacturing defects, severe overheating could potentially pose a fire risk, although modern safety standards make this rare in certified products. More commonly, the bulb housing might become uncomfortably hot to the touch.

Here’s a table summarizing the symptoms linked to inadequate heat sinking:

Investing in products with a well-designed heat sink for led bulb isn’t just about longevity; it’s about ensuring the bulb delivers the expected performance in terms of brightness and color consistency throughout its intended life. It avoids the frustration and cost of premature replacements.

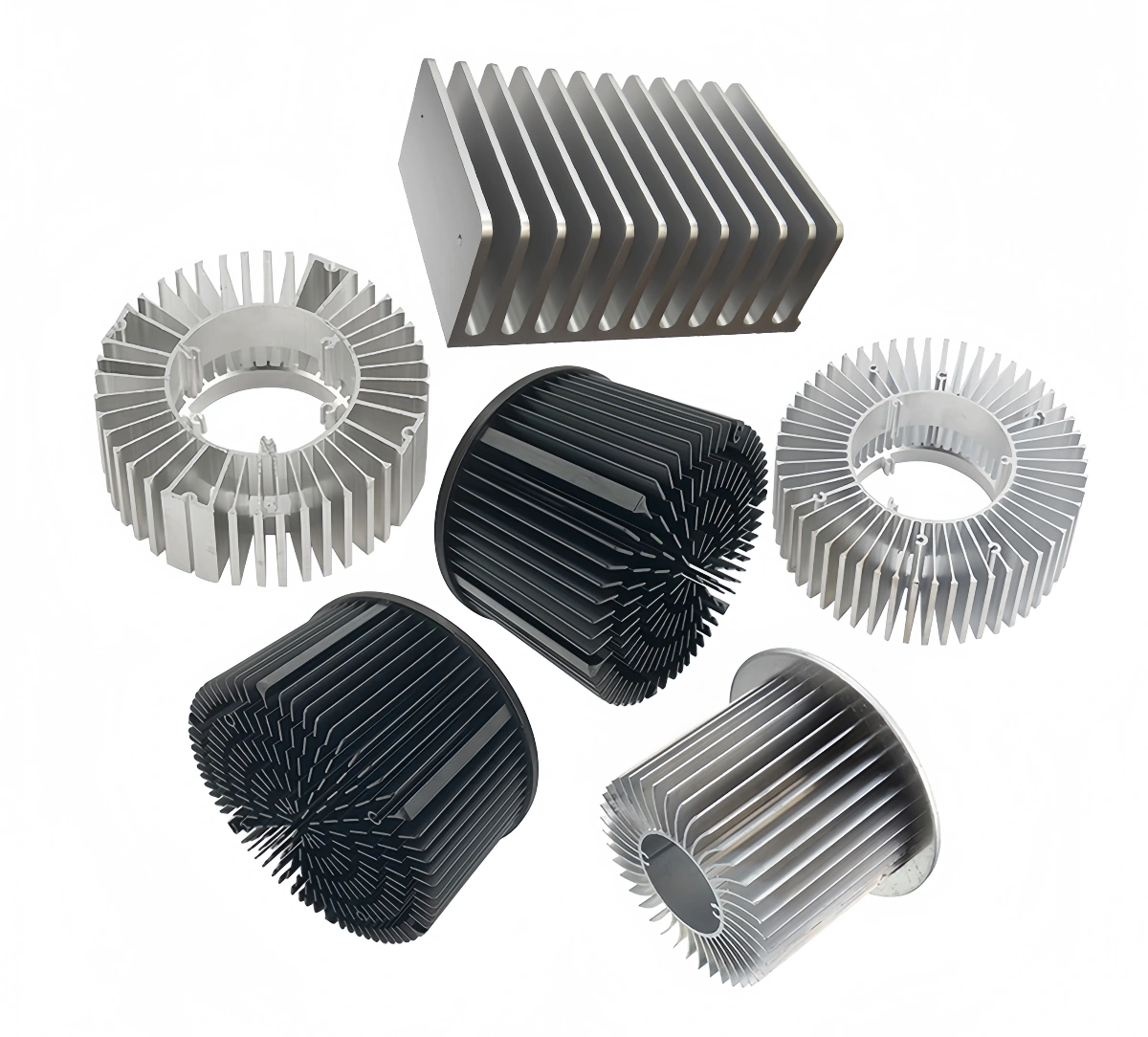

Is Aluminum a Suitable Material for a Heat Sink for LED Bulb?

When sourcing components, you always weigh material options. Is aluminum the right choice for a critical part like an heat sink for led bulb? As an aluminum manufacturing specialist, I can confidently say yes, it often is.

In my professional opinion, aluminum stands out as an excellent and widely used material for the vast majority of LED bulb heat sinks. It strikes a superb balance between high thermal conductivity, light weight, reasonable cost, and outstanding manufacturability through processes like extrusion and CNC machining. [Insert brief mention of common aluminum alloys like 6063, often used for their extrudability and thermal properties].

Aluminum’s popularity for heat sink for led bulb applications isn’t accidental. It possesses a combination of properties that make it highly suitable for thermal management, especially in cost-sensitive, high-volume products like LED lighting.

Excellent Thermal Properties

While not quite as conductive as copper, aluminum alloys offer very good thermal conductivity, typically in the range of 150-220 W/(m·K), depending on the specific alloy. This is significantly better than plastics and usually sufficient to efficiently conduct heat away from the LED source in most standard bulb designs.

Key Advantages of Aluminum

• Cost-Effectiveness: Aluminum is generally much less expensive than copper, making it ideal for competitive consumer and commercial lighting markets.
• Light Weight: Aluminum’s density is about one-third that of copper. This reduces the overall weight of the bulb, which can be important for fixture design and shipping costs.
• Manufacturability: Aluminum is readily machinable (CNC), castable, and, very importantly, extrudable. Extrusion allows for complex fin geometries to be created cost-effectively in long lengths, which are then cut to size. This is perfect for mass production of heat sinks. ALUT specializes in both extrusion and CNC machining for precise, custom designs.
• Corrosion Resistance: Aluminum naturally forms a protective oxide layer, offering good resistance to environmental corrosion. This can be further enhanced with treatments like anodizing.
• Recyclability: Aluminum is highly recyclable, contributing to sustainability goals.

Common Aluminum Alloys Used

While pure aluminum has high conductivity, alloys are used for better strength and manufacturability. Common choices include:

• 6063 Alloy: Very popular for extrusions due to its excellent surface finish and good thermal conductivity (~200 W/(m·K)). Often used for architectural and heat sink for led bulb applications.
• 6061 Alloy: A bit stronger than 6063, still with good conductivity (~170 W/(m·K)) and excellent machinability. Used when more structural integrity or complex CNC machining is needed.
• 1000 Series Alloys (e.g., 1050, 1100): Closer to pure aluminum, offering higher conductivity (>220 W/(m·K)) but lower strength. Used where maximum thermal performance is prioritized over mechanical strength.

Aluminum vs. Other Materials

While copper offers superior thermal conductivity, its higher cost and weight often make aluminum the more practical and economical choice for most heat sink for led bulb designs. Thermally conductive plastics are improving but still lag significantly in performance for higher-power applications. Therefore, aluminum remains the go-to material, providing a reliable and cost-effective solution for managing heat in LED bulbs.

Conclusion

Ultimately, a high-quality heat sink for led bulb isn’t just a component; it’s essential insurance for performance and lifespan. Choosing the right design and material, very often aluminum, guarantees your LEDs shine brightly for years.
