The Evolution of Aluminum Profile Stretch Bending: Advances in Integrated Extrusion-Bending Technology

Executive Summary:
In the pursuit of lightweighting and structural optimization, the demand for complex curved aluminum profiles has surged across the automotive, aerospace, and high-speed rail industries. While traditional aluminum profile stretch bending (a secondary cold-forming process) has been the industry standard, it faces challenges such as springback, cross-sectional distortion, and high production costs. This article explores the technical frontier: Integrated Extrusion-Bending (IEB) technology. We analyze the transition from traditional stretch bending to one-step forming, detailing the mechanisms of external guiding devices and differential material flow, and providing a roadmap for the future of precision aluminum fabrication.

1. Introduction: The Rising Demand for Curved Aluminum Profiles

Aluminum alloy profiles are the backbone of modern industrial design due to their high strength-to-weight ratio, excellent corrosion resistance, and recyclability. Traditionally, straight profiles dominated the market. However, as industries like Electric Vehicles (EVs) and aerospace move toward “Integrated Bio-structures” and “Aerodynamic Efficiency,” the need for curved profiles has become critical.

Compared to straight sections, curved aluminum profiles offer:

• Enhanced Structural Rigidity: Better load distribution in chassis and frames.
• Space Optimization: Ability to follow complex contours in tight engine bays or cabins.
• Aerodynamic Freedom: Enabling sleek, low-drag designs for high-speed transport.
• Aesthetic Appeal: Vital for modern architectural and industrial design.

Despite these benefits, achieving high-precision curvature without compromising material integrity remains a significant engineering challenge. This brings us to the evolution of aluminum profile stretch bending.

2. Traditional Aluminum Profile Stretch Bending vs. Integrated Technology

2.1 The Limitations of Two-Step Cold Bending

Traditionally, manufacturing a curved profile is a two-step process:

1. Extrusion: Creating a straight profile.
2. Bending: Using cold-forming techniques such as stretch bending, rotary draw bending, or roll bending.

While mature, these traditional methods suffer from several “pain points”:

• Springback : Once the bending force is removed, the material partially returns to its original shape, making dimensional accuracy difficult to control.
• Sectional Deformation: Hollow profiles often collapse or wrinkle without internal support (mandrels), which are difficult to use for complex geometries.
• Material Fatigue: Cold working can introduce residual stresses that lead to micro-cracking or reduced fatigue life.
• High Costs: Multiple setups, specialized tooling, and high scrap rates increase the total cost of ownership (TCO).

2.2 The Integrated Extrusion-Bending (IEB) Paradigm

To solve these issues, researchers and manufacturers are turning to Integrated Extrusion-Bending (IEB). This “One-Step” process shapes the profile while it is still hot and exiting the extrusion die. Because the material is at an elevated temperature, its yield strength is lower, and its ductility is higher, virtually eliminating traditional stretch bending defects.

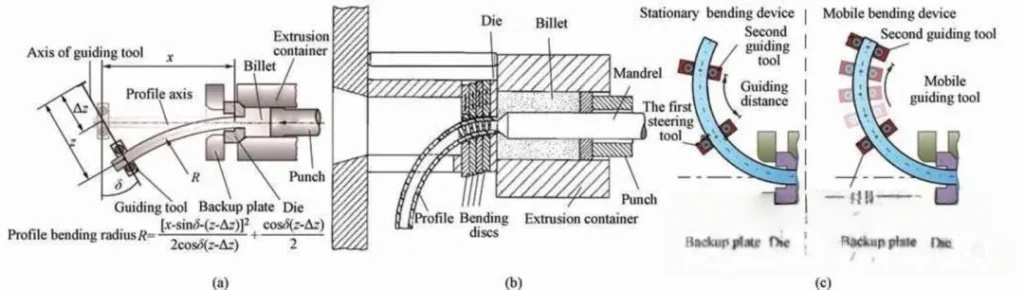

3. IEB Category I: External Bending Device Systems

The first major branch of integrated technology involves installing a specialized guiding or bending unit at the exit of the extrusion die.

3.1 Technological Variations

• Single-Guide Systems: Uses a single movable tool to apply a lateral force, creating a specific radius.
• Segmented Disc Guides: Employs multiple discs to distribute the bending force, allowing for more gradual curves and reduced surface marking.
• Dual-Guide Systems (Fixed & Mobile): The most advanced version. A primary guide controls the initial bend, while a secondary guide compensates for gravity-induced sagging and ensures the curvature remains consistent throughout the extrusion length.

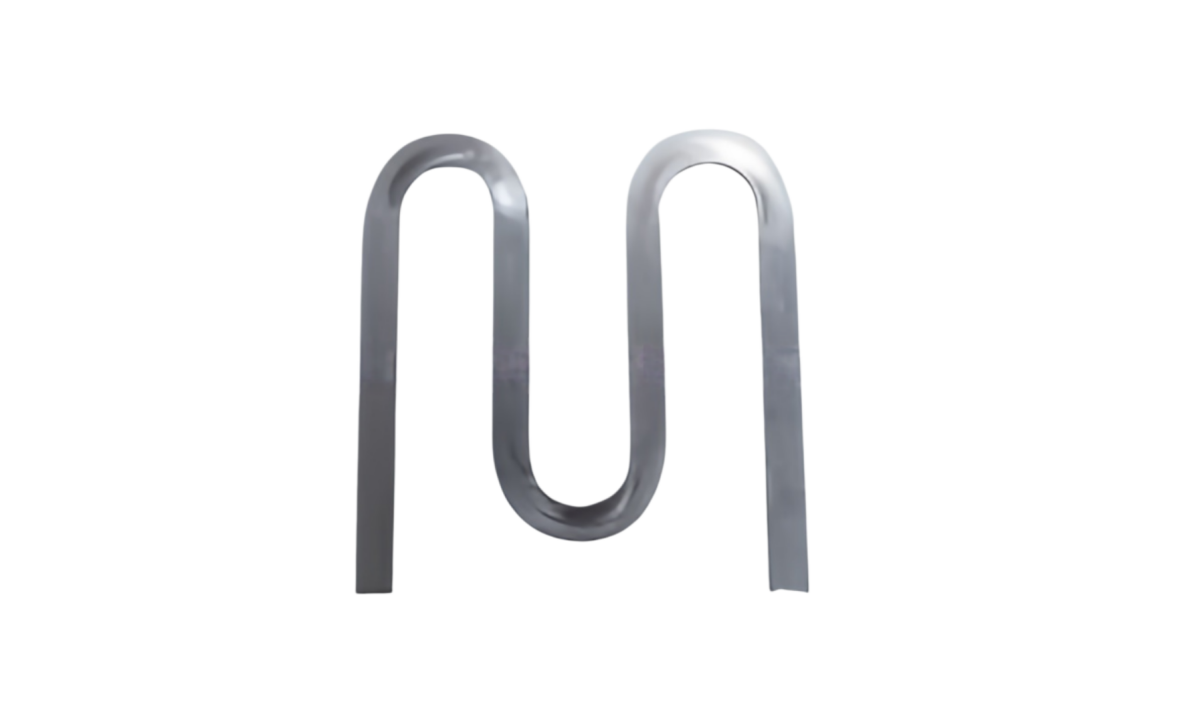

3.2 Integrated Online Quenching

For heat-treatable alloys (like the 6xxx and 7xxx series), maintaining mechanical properties is vital. Modern IEB setups incorporate Online Quenching Units. By using water mist or forced air between the guide tools, the profile is “frozen” into its curved shape while undergoing the T4 or T6 heat treatment cycle. This synchronization ensures that the “stretch bending” effect happens under optimal thermal conditions, resulting in a 50% to 75% reduction in springback compared to cold stretch bending.

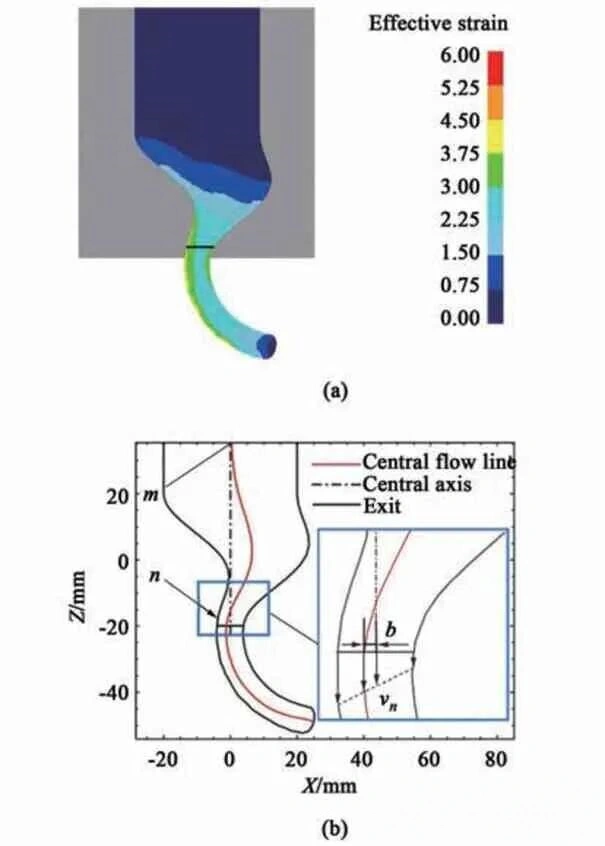

4. IEB Category II: Differential Material Flow (The Future of Precision)

The second branch of IEB—and perhaps the most innovative—does not use external force. Instead, it manipulates the internal physics of the extrusion process to make the profile “naturally” curve as it exits the die. This is known as Differential Material Flow.

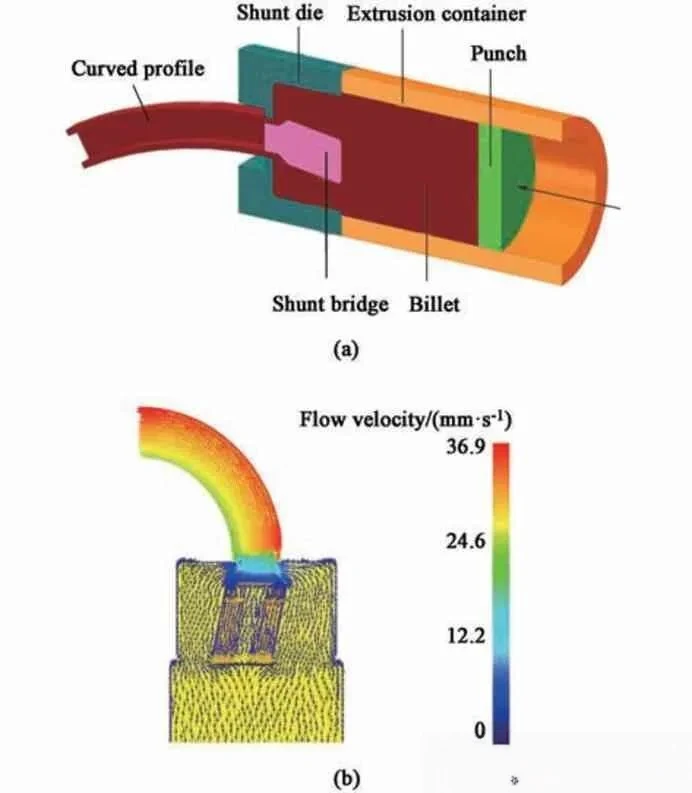

4.1 Die Geometry Modification

By altering the design of the extrusion die, engineers can create a velocity gradient across the profile cross-section. If the material on the “left” side of the die flows faster than the “right” side, the profile will naturally curve toward the right.

• Eccentric Die Orifices: Offsetting the mandrel or the die opening to create uneven flow resistance.
• Variable Bearing Lengths: Longer “land” areas in the die create more friction, slowing down specific parts of the profile.
• Tilted Die Bridges: Directing the flow of aluminum into the welding chamber at an angle to induce curvature in hollow sections.

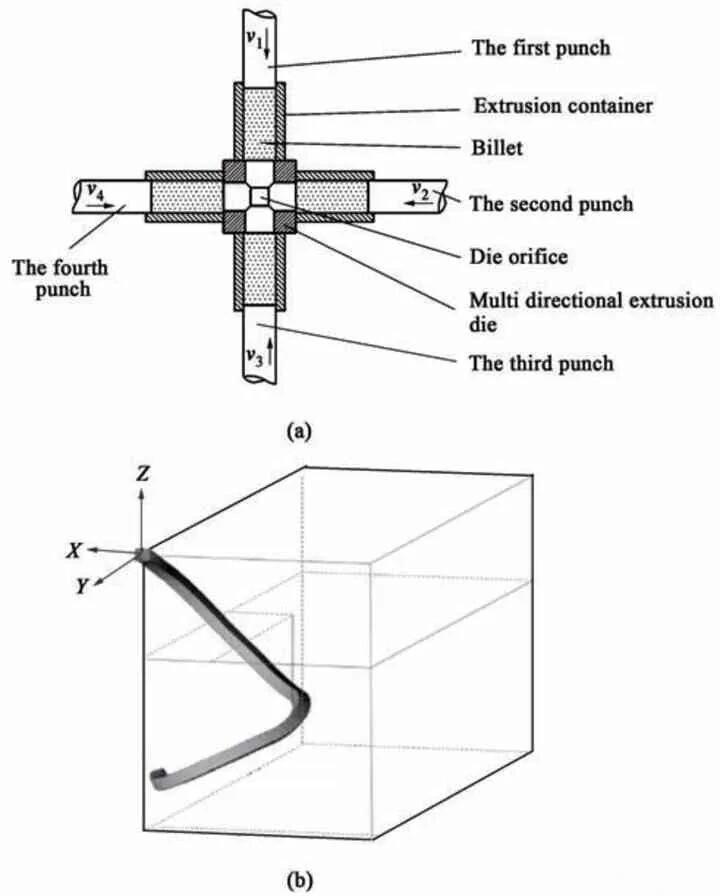

4.2 Multi-Ram Differential Extrusion

This is the “high-tech” pinnacle of integrated forming. Instead of one main piston (ram), the machine uses multiple rams. By controlling the speed of each ram independently, the operator can adjust the profile’s curvature in real-time.

• 2D Bending: Using two rams to create planar curves.
• 3D Spatial Bending: Using three or more rams to create complex, “corkscrew” or multi-axis curves that would be impossible with traditional aluminum profile stretch bending.

5. Technical Advantages: Why IEB is Replacing Traditional Methods

For SEO purposes and technical clarity, it is essential to highlight the specific advantages of IEB for industrial procurement and engineering:

1. Zero to Minimal Springback: Because the forming occurs at high temperatures (near the solvus temperature of the alloy), elastic recovery is negligible.
2. Superior Surface Quality: Integrated methods reduce the “orange peel” effect and surface scratching often seen in cold stretch bending.
3. Complex Hollow Geometries: IEB allows for the bending of thin-walled, multi-chambered profiles without the need for internal fillers or mandrels.
4. Grain Refinement: Research shows that differential lateral extrusion can significantly refine the grain size (e.g., from 350μm to 3μm in some alloys), leading to higher tensile strength and hardness.
5. Lean Manufacturing: By combining extrusion, bending, quenching, and cutting into one line, manufacturers reduce floor space requirements and lead times.

6. Current Challenges and Engineering Obstacles

Despite its potential, IEB is not yet a “plug-and-play” solution. Several hurdles remain:

• Control Complexity: Managing the relationship between extrusion speed, temperature, friction, and curvature requires sophisticated AI-driven control systems.
• Equipment Investment: IEB requires specialized dies and multi-ram presses that are more expensive than standard extrusion lines.
• 3D Accuracy: While 2D bending is becoming stable, high-precision 3D spatial bending still faces challenges in dimensional repeatability.

7. Future Trends: The Roadmap for Aluminum Profile Bending

As we look toward 2025 and beyond, the following areas will define the industry:

7.1 Digital Twins and Simulation

The “trial and error” method of die design is being replaced by Finite Element Analysis (FEA) and Digital Twins. Engineers can now simulate the differential flow and predict the exact curvature before a single piece of steel is cut for the die.

7.2 Intelligent Closed-Loop Feedback

Future IEB lines will feature laser scanning at the exit point. If the curvature deviates by even 0.1mm, the system will automatically adjust the ram speeds or guide positions in real-time to correct the error.

7.3 Advanced Multi-Material Composites

We are seeing the emergence of Composite Bending, where aluminum is co-extruded with other materials (like magnesium or reinforced liners) and bent simultaneously. This creates ultra-high-strength components for the next generation of aerospace frames.

8. Conclusion: Choosing the Right Bending Strategy

For standard, high-volume production of simple curves, traditional aluminum profile stretch bending remains a cost-effective choice. However, for the “Tier 1” automotive and aerospace sectors—where weight, precision, and structural integrity are non-negotiable—Integrated Extrusion-Bending represents the future.

By understanding the mechanics of material flow and the benefits of hot-state forming, manufacturers can unlock new possibilities in industrial design, pushing the boundaries of what is possible with aluminum alloys.
