Custom Aluminum Tube Bending

We do a lot of custom tube bending. Getting the right data is key! What do we need to know?

Custom aluminum tube bending allows for highly specialized designs, but success relies on accurate design data, understanding the impact of tooling costs, and adherence to relevant certifications. In my factory, we emphasize clear communication and rigorous processes to deliver custom solutions that meet our client’s exact needs.

So, what information is crucial for custom aluminum tube bending projects? Let’s explore.

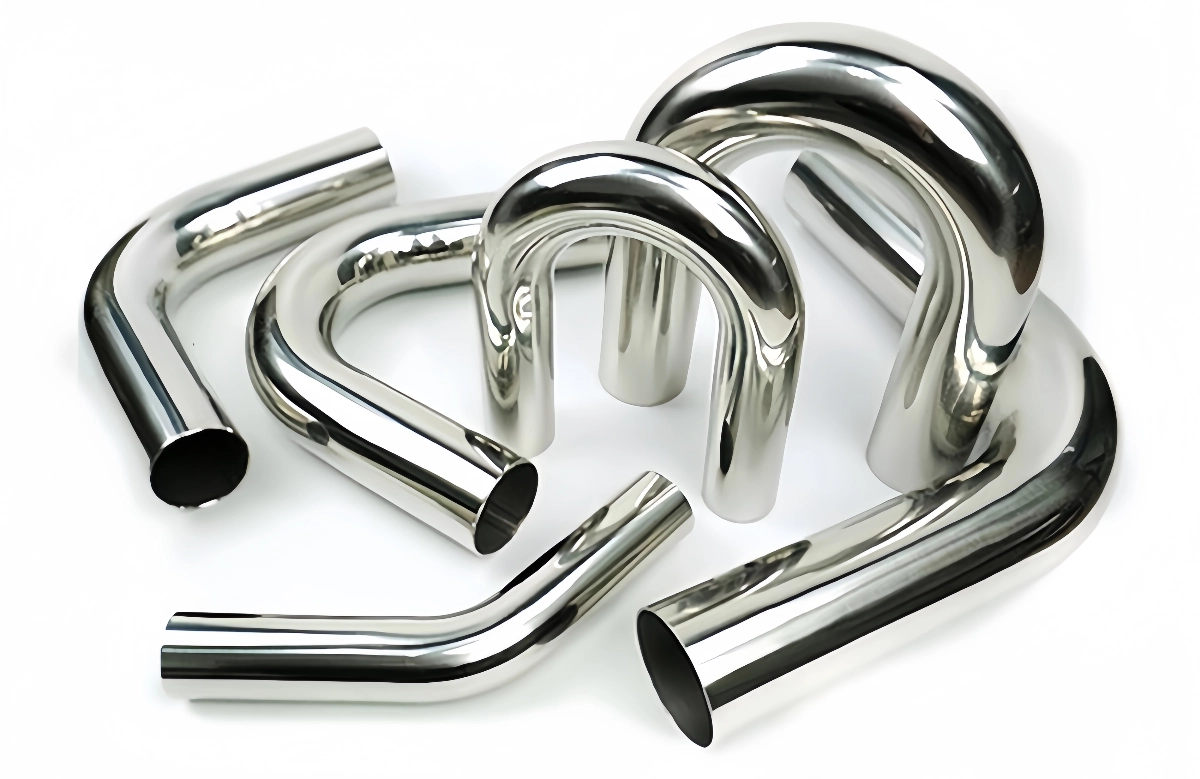

What design data is crucial for custom aluminum tube bending?

What information do you absolutely have to have before starting a custom bending project? Let’s discuss critical design data.

I think accurate 2D or 3D drawings are essential. We also need to know the required tolerances, the specific aluminum alloy, and any surface finish requirements. The more detail we have upfront, the smoother the process will be.

Let’s delve deeper into the design data that is crucial for custom aluminum tube bending. Providing complete and accurate information upfront will minimize errors, reduce lead times, and ensure a successful outcome.

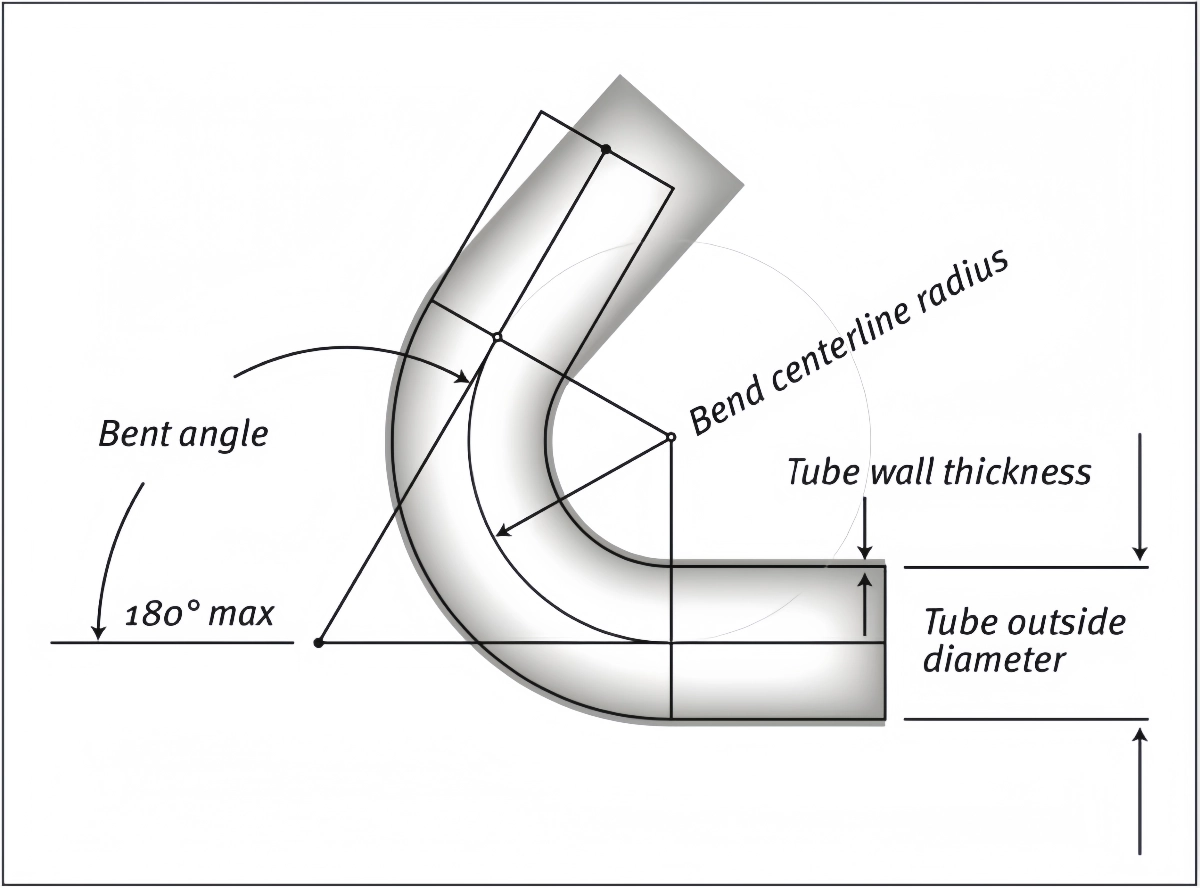

2D or 3D Drawings

Detailed drawings are the foundation of any custom bending project.

Dimensions: Provide accurate dimensions for all tube segments, bends, and features.
Bend Locations: Clearly indicate the location and direction of each bend.
Bend Radii: Specify the required bend radii for each bend.
Material Thickness: Indicate the wall thickness of the aluminum tubing.
File Formats: Provide drawings in commonly used file formats, such as DWG, DXF, or STEP.

Tolerances

Specifying tolerances ensures that the final product meets the required specifications.

Tolerance Parameter	Description	Importance
Length Tolerances	The allowable variation in the length of tube segments.	Ensures proper fit and function in assemblies.
Bend Angle Tolerances	The allowable variation in the bend angles.	Critical for maintaining the desired shape and alignment.
Bend Radius Tolerances	The allowable variation in the bend radii.	Affects the structural integrity and appearance of the bent tube.
Ovality Tolerances	The allowable variation in the tube’s cross-sectional shape (deviation from a perfect circle).	Impacts fluid flow and structural strength.

Material Specifications

Specifying the aluminum alloy ensures that the correct material is used for the project.

Alloy Designation: Provide the specific alloy designation, such as 6061-T6 or 5052-H32.
Temper: Indicate the required temper, such as T6 or H32.
Material Certificates: Provide material certificates to verify the alloy and temper.

Surface Finish Requirements

Specifying the surface finish requirements ensures that the final product meets the desired aesthetic and functional requirements.

Anodizing: Indicate whether anodizing is required and specify the desired color and thickness.
Painting: Specify the paint type, color, and application method.
Polishing: Indicate whether polishing is required and specify the desired level of polish.

Other Important Data

Other important design data may include:

Welding Requirements: Specify any welding requirements, such as the welding process and filler material.
Pressure Testing Requirements: Indicate whether pressure testing is required and specify the test pressure.
Cleaning Requirements: Specify any cleaning requirements, such as degreasing or passivation.

In my factory, we have a dedicated engineering team that reviews all design data before starting a custom aluminum tube bending project. This ensures that we have all the information we need to deliver a high-quality product that meets our clients’ exact specifications.

How does tooling customization impact aluminum tube bending costs?

How does custom tooling affect the overall price of a tube bending job? Let’s consider tooling costs.

I think tooling customization can significantly impact the cost of a project. Specialized dies, mandrels, and other tooling can be expensive to design and manufacture. However, using the right tooling can also improve efficiency and reduce the risk of defects, potentially saving money in the long run. It’s a trade-off!

Let’s delve deeper into how tooling customization impacts aluminum tube bending costs. Understanding this relationship is crucial for making informed decisions about tooling investments and project budgeting.

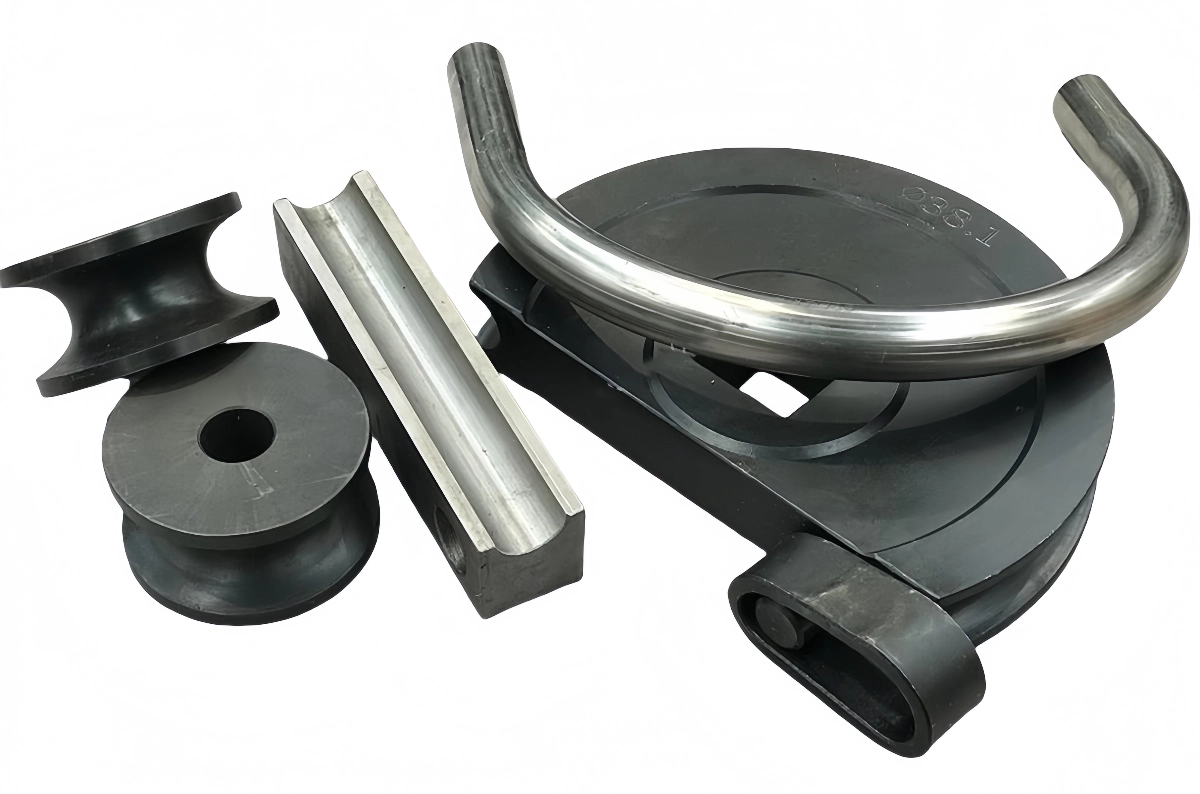

Tooling Design Costs

The design of custom tooling can be a significant cost factor.

Complexity: The complexity of the tooling design affects the engineering time required.
Software: Specialized CAD/CAM software may be needed for complex designs.
Expertise: Experienced tooling designers command higher rates.

Tooling Manufacturing Costs

The manufacturing of custom tooling can also be expensive.

Cost Factor	Description	Impact
Material Costs	The cost of the materials used to make the tooling, such as hardened steel.	High-quality materials increase tooling durability but also increase costs.
Machining Costs	The cost of machining the tooling to the required dimensions and tolerances.	Precise machining is essential for accurate bending, but it can be time-consuming.

Tooling Maintenance Costs

Tooling maintenance is an ongoing cost that should be considered.

Sharpening: Bending dies and mandrels may need to be sharpened periodically to maintain their accuracy.
Repair: Tooling can be damaged during use and may need to be repaired or replaced.
Storage: Proper storage is essential for protecting tooling from damage and corrosion.

Cost-Benefit Analysis

It is important to conduct a cost-benefit analysis before investing in custom tooling.

Project Volume: Custom tooling is more cost-effective for high-volume projects.
Complexity: Custom tooling may be necessary for complex bends or tight tolerances.
Long-Term Use: If the tooling will be used for multiple projects, the initial investment may be justified.

In my factory, we carefully evaluate the tooling requirements for each custom aluminum tube bending project. We work with our clients to determine the most cost-effective tooling solutions that meet their specific needs.

What certifications are important for custom aluminum tube bending?

What certifications demonstrate a company’s ability to do custom tube bending well? Let’s talk certifications.

I think ISO 9001 certification is a good starting point. It shows that the company has a quality management system in place. Depending on the application, industry-specific certifications like AS9100 (for aerospace) may also be important. Clients need to trust our processes.

Let’s dive deeper into the certifications that are important for custom aluminum tube bending. These certifications provide assurance of quality, competence, and adherence to industry standards.

ISO 9001: Quality Management Systems

ISO 9001 is an internationally recognized standard for quality management systems.

Process Control: Demonstrates that the company has established and maintains effective processes for controlling all aspects of its operations.
Customer Focus: Emphasizes customer satisfaction and continuous improvement.
Auditing: Requires regular internal and external audits to ensure compliance.

AS9100: Aerospace Quality Management Systems

AS9100 is a quality management standard specifically for the aerospace industry.

Standard Feature	Description	Benefit
Enhanced Requirements	Includes additional requirements beyond ISO 9001 to address the specific needs of the aerospace industry.	Ensures high levels of quality and safety in aerospace applications.
Risk Management	Emphasizes risk management and mitigation.	Minimizes the risk of defects and failures.
Configuration Management	Requires strict configuration management to ensure that all parts and components are properly identified and tracked.	Prevents errors and ensures traceability.

Other Relevant Certifications

Other certifications may be relevant depending on the specific application.

NADCAP: For specialized processes, such as heat treating and non-destructive testing.
AWS D1.1: For structural welding.
ISO 14001: For environmental management systems.

Importance of Certification Verification

It is important to verify the validity of any certifications before selecting a custom aluminum tube bending supplier.

Accreditation Body: Check that the certification body is accredited by a recognized organization.
Scope of Certification: Ensure that the scope of the certification covers the specific services being provided.
Certification Date: Verify that the certification is current and has not expired.

In my factory, we maintain several certifications to demonstrate our commitment to quality and customer satisfaction. We believe that these certifications provide our clients with the assurance that we have the expertise and processes in place to deliver high-quality custom aluminum tube bending solutions.

How to scale production for custom aluminum tube bending projects?

What’s the best way to increase production when demand for custom tubes grows? I’ll give some scaling strategies.

I think scaling production requires careful planning and investment. We often start by optimizing our existing processes and equipment. Then, we may need to add more equipment, hire more staff, or even expand our facilities. It’s all about anticipating future needs.

Let’s dive deeper into how to scale production for custom aluminum tube bending projects. Efficiently scaling production while maintaining quality is essential for meeting increasing demand and maximizing profitability.

Process Optimization

Optimizing existing processes is the first step in scaling production.

Lean Manufacturing: Implement lean manufacturing principles to eliminate waste and improve efficiency.
Automation: Automate repetitive tasks to reduce labor costs and increase throughput.
Process Analysis: Continuously analyze and improve processes to identify and eliminate bottlenecks.

Equipment Investment

Investing in additional equipment may be necessary to increase capacity.

Equipment Type	Benefit
Bending Machines	Adding more bending machines increases the number of tubes that can be bent simultaneously.
CNC Machines	CNC machines provide greater precision and automation, allowing for faster and more consistent bending.
Inspection Equipment	Advanced inspection equipment ensures that quality is maintained as production scales.

Workforce Expansion

Expanding the workforce may be necessary to support increased production.

Skilled Operators: Hire skilled operators who are experienced in aluminum tube bending.
Training Programs: Implement training programs to ensure that all employees are properly trained on the latest equipment and techniques.
Cross-Training: Cross-train employees so they can perform multiple tasks.

Facility Expansion

Expanding the facilities may be necessary to accommodate additional equipment and personnel.

Layout Optimization: Optimize the layout of the facility to improve workflow and minimize material handling.
Storage Solutions: Implement efficient storage solutions to manage the increased volume of raw materials and finished products.

Supply Chain Management

Effective supply chain management is essential for scaling production.

Reliable Suppliers: Establish relationships with reliable suppliers who can provide a consistent supply of high-quality materials.
Inventory Management: Implement an effective inventory management system to minimize stockouts and overstocking.
Logistics Planning: Optimize logistics planning to ensure that materials are delivered on time and that finished products are shipped efficiently.

In my factory, we have a well-defined plan for scaling production as demand increases. We continuously monitor our processes and equipment to identify areas for improvement. We also invest in our employees and our facilities to ensure that we can meet the growing needs of our clients.

Conclusion

Custom aluminum tube bending takes skill. Data, tooling cost, and scale determine success.
